TDK 880N DVD±RW recorder - Page 11

Writing Quality Tests - C1 / C2 Error Measurements

The C1 / C2 error rate was measured for the recorded discs burned during the previous writing tests (jitter). The software used was UMDoctor Pro II, and the reader was the Optorite DD0401 drive.

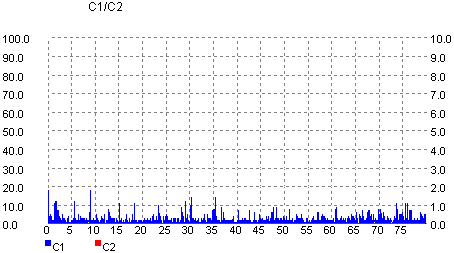

Taiyo Yuden 48x recorded at 4x

Taiyo Yuden 48x recorded at 8x

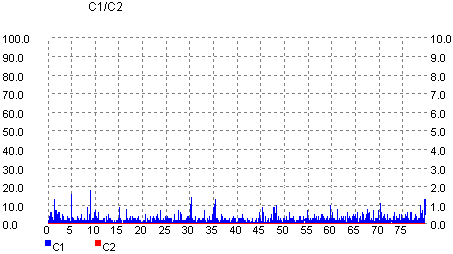

Taiyo Yuden 48x recorded at 16x

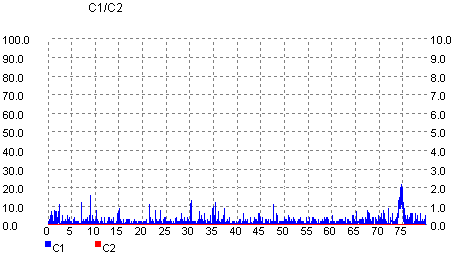

Taiyo Yuden 48x recorded at 20x

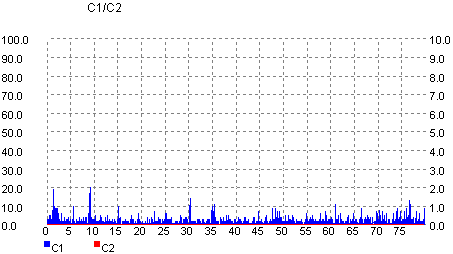

Taiyo Yuden 48x recorded at 24x

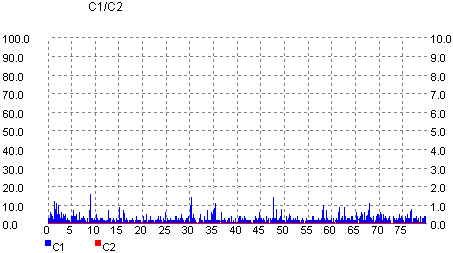

Taiyo Yuden 48x recorded at 32x

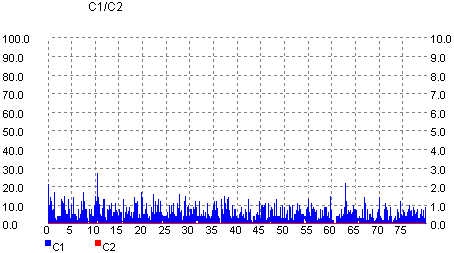

CMC Magnetics 48x recorded at 32x

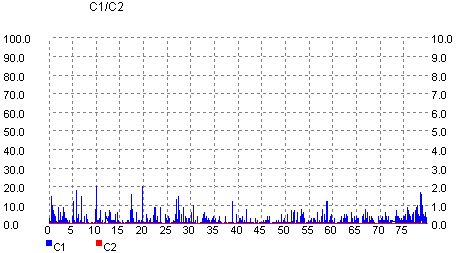

Philips 52x recorded at 32x

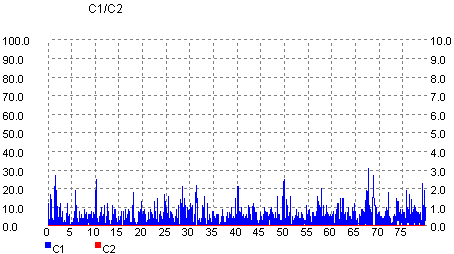

Mam 52x recorded at 32x

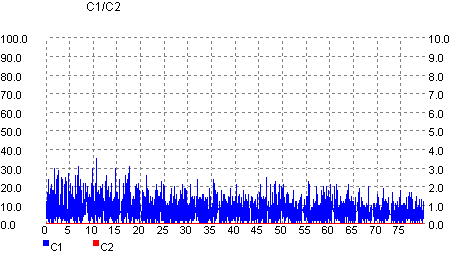

Samsung 48x recorded at 32x

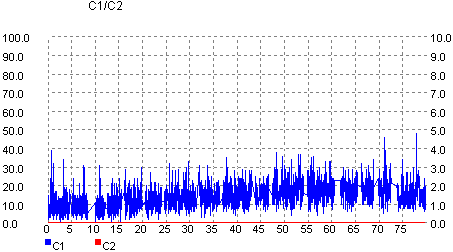

Prodisc 52x recorded at 32x

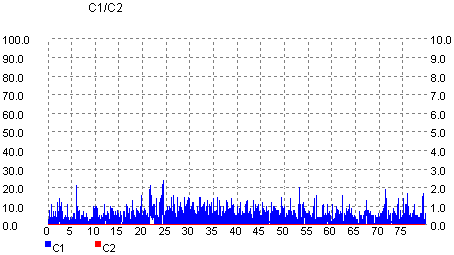

Platinum 48x recorded at 32x

Below we present information regarding the CD-R media used in this test.

Disc	ID Code	Capacity
Taiyo Yuden 48X	TaiyoYuden 97m24s01f	79:59:72
Platinum 48x	Unknown 97m17s06f	79:59:74
CMC Magnetics 48x	CMC Magnetics 97m26s66f	79:59:71
Samsung 48x	Plasmon 97m27s18f	79:59:74
Mam 52X	Mitsui 97m27s58f	79:59:74
Philips 52X	Ritek 97m15s17f	79:59:70
Prodisc 52X	Prodisc 97m32s19f	79:59:74

- Summary

According to our measurement, the drive's CD writing quality is good with all of our media brands we tested. The C1 levels are all low, while no C2 error was reported.
