DVD Error Correction Tests

In the following tests we examined the DVD reading capabilities of the TEAC DW-548D drive with scratched / defective DVD media. For the tests we used CDVD Benchmark and Nero CDSpeed. The reference test media come from ALMEDIO.

- Single Layer media

ABEX TDR-821

This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm. The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer rate test.

The drive read the 821 test disc without reporting any reading errors. There were no speed deviations while reading the defective areas on the disc's surface. We consider that this drive accelerates up to 15x with DVD-ROM media.

ABEX TDR-825

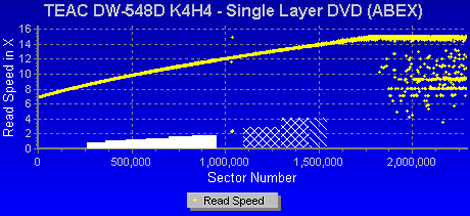

This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The data structure of the disc is exactly the same as that of the TDR-821, with the difference that there are no scratches on the surface and instead defective areas ranging in dimensions from 0.5 to 1.1 mm. There are also fingerprints with height between 65 and 75 micrometers.

The drive managed to read the defective areas on the disc without problems. Once again the reading speed accelerates up to 15x.

- Dual Layer media

ABEX TDR-841

This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches of dimensions ranging from 0.4 to 3.0mm, on both layers.

The drive slowly starts reading from 4x speed and accelerates up to 8x mark, reading the first layer with no problems. Starting again reading the second layer from 4x speed, drive freeze reading about the 3,000,000 sector number for long time giving to us many read and a couple of Abex errors at 6x speed, but doing nothing more. Hence, we forced to eject the media tray from the drive to continue testing.

ABEX TDR-845

This disc is a single sided, dual layer DVD-ROM disc with a capacity of 8.5GB. The only difference between the TDR-845 and the TDR-841 is that the first includes both defective areas and fingerprints. The dimensions of the defective areas range from 0.5 to 1.1 mm and the fingerprints have height sized from 65 to 75 microns (micrometers).

Both layers were read at 8x speed. The defective area on to first layer, did not pose a problem for the drive, but reading second layer the drive gave to us an Abex error up to the same sector.This time finishes reading without problem.

ABEX TDV-541

The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB.The disc is based on the TDV-540 series which is designed for inspection and adjustment of DVD-VIDEO players. The disc checks the layer switch operation from layer 0 to layer 1 and also includes test pictures and test signals for DVD sound files. The current TDV-541 also checks the error correcting capabilities of the drive and includes scratches sized from 0.4 to 3.0 mm.

The drive read the TDV-541 test disc without reporting any errors. Playing the disc through PowerDVD confirmed that both layers were readable.

ABEX TDV-545

The TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer Video/S-2 disc with a capacity of 8.5GB. The TDV-545 includes artificial black dots on the disc's surface, sized from 0.4 to 1.0 mm. It also has 65 - 75 micrometer high fingerprints.

This disc seems also to be no problem for TEAC drive. The black dots and fingerprints were bypassed without outstanding problems.
