Terramaster F2-422 NAS Server

Jul 10,2021 0

5. Apps/Performance



Review Pages

1. Introduction
2. Retail Package
3. Getting familiar with the TOS operating system
4. TOS System
5. Apps/Performance
6. Upgrade/Other operating systems
7. Bios
8. Conclusion

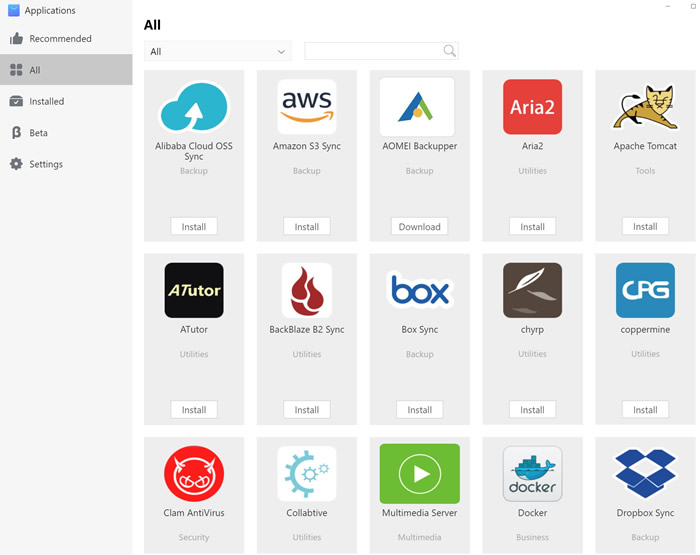

Passing to Application are, we can find tons of ready to get installed apps:

Due to the fact that the Terramaster F2-422 is based upon Intel platform, many well-known applications can be found or ported from developers or simple users. Here you can view mode details about installing CUSTOM apps, either you downloaded from the Internet or created yourself.

You will find the following pre-compiled apps with the following categories:

Backup

  • Alibaba Cloud OSS Sync
  • Amazon S3 Sync
  • AOMEI Backupper
  • Box Sync
  • Dropbox Sync
  • Duple Backup Vault
  • Duple Backup
  • ElephantDrive
  • Google Drive Synce
  • Koofr Synce
  • Megadisk Sync
  • Nextcloud Sync
  • OneDrive Sync
  • OpenDrive Sync
  • owncloud
  • pCloud Synce
  • USB copy
  • Yandex Disk Synce
  • Baidu Netdisk Sync
  • CubeBackup

Business

  • Docker
  • Mail Server
  • WordPress
  • VirtualBox

Tools

  • Apache Tomcat
  • Gcc build tools
  • Git
  • Java Virtual Machine
  • MariaDB
  • Node.js
  • phpMyAdmin
  • Python3
  • SVN Server

Multimedia

  • DLNA Media Server
  • Emby Server
  • Itunes Server
  • Plex Media Server

Security

  • Clam Antivirus
  • File System Cluster
  • Snapshot

Utilities

  • Aria2
  • ATutor
  • BackBlaze B2 Sync
  • chryrp
  • coppermine
  • Collbtive
  • e107_cms
  • elFinder
  • FreshRSS
  • go
  • headphones
  • IceHrm
  • DNS Server
  • Proxy Server
  • iSCSI Target Pro
  • iSCSI Target
  • Joomla
  • LazyLibrarian
  • LimeSurvey
  • lua
  • MantisBT
  • Matomo
  • mongo
  • MyBB
  • Net2FTP
  • netdata
  • opencart
  • OrangeHrm
  • PDF Reader
  • perl5
  • phpBB
  • pip
  • PodcastGenerator
  • PrestaShop
  • Ruby
  • qBittorent
  • Transmission
  • Text Editor
  • virtualhere
  • VPN Server
  • Vtiger CRM
  • Web Server
  • Centralized Backup
  • PHP 7.4
  • PHP 7.3
  • PHP 7.2
  • PHP 5.6
  • Portainer
  • Terra Photo
  • Terra Music

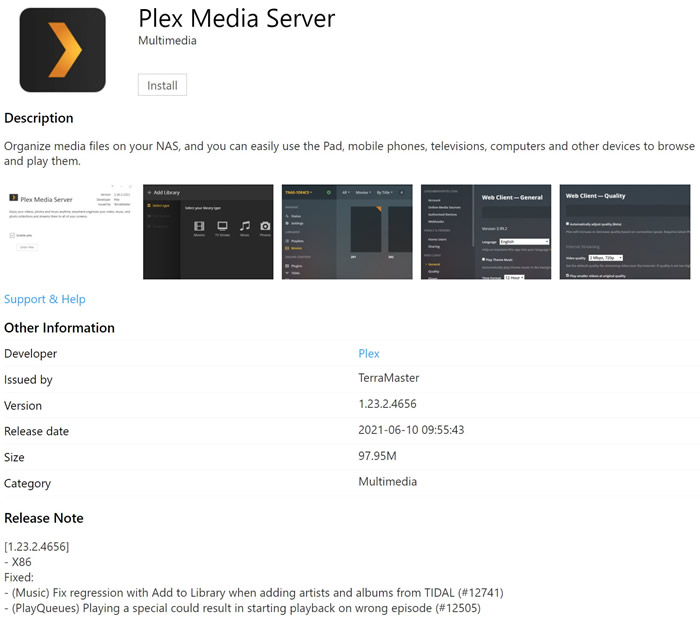

In our case we installed the Plex Media server app to test its performance.

According to the compatibility list for the F4-222, the NAS server can do software transcoding SD/HD 720p and some HD 1080p files, while 4K media serving is not supported. However the device can do hardware transcoding up to 4K (only SDR, no HDR) as the official Plex compatibility page shows.

Click to enlarge!

Setup the Plex Media Server is rather easy after installing the plug-in you need to get into the desktop area of NAS and you will find an icon at the bottom left area. From there you can start the setup process. Via the local network we trasferred our data to the /public folder for the NAS server and into the Plex Media Server we added a library with the following path (/mnt/md0/public/Media) to be possible to scan your media files.

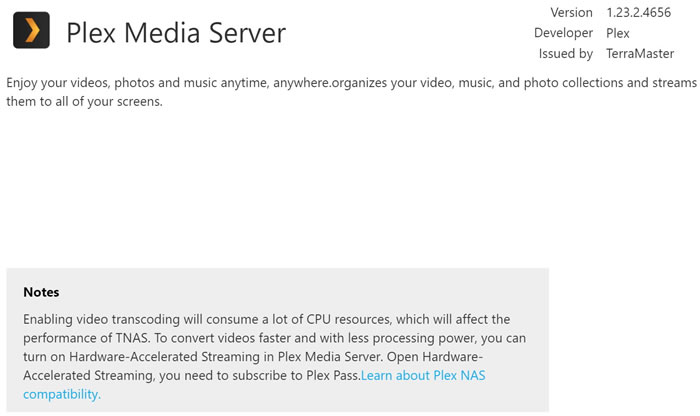

While the Plex application supports hardware transcoding, in order to enable it you need Plex pass to activate it, in Plex App Web interface, Find Control Panel > Hardware > Hardware Resource and Turn on Use hardware acceleration when available. If you don’t enable hardware transcoding you cannot playback x265 neither 4k x264 files.

Below are several of our tests. Users can expect playback x264 files up to 4k 60fps without any issue and with low CPU usage. Note that x264 files supported up to 110mbps encoding bitrate. Passing to x265 format, you need to use up to 4K 8bit files in order to playback them. 10bit and HDR are not supported from the Intel® Celeron® J3455 processor.

media format
max playback at original quality via local network
cpu usage %
x264 bitrate
jellyfish-110-mbps-hd-h264.mkv
3 ~ 7%
x265 bitrate

jellyfish-35-mbps-hd-hevc.mkv
jellyfish-20-mbps-hd-hevc-10bit.mkv

17~25%
1080p x264
no problems with software decoding
3 ~ 7%
1080p x265
only playable with hardware acceleration enabled
17~25%
4K x264 30fps
big_buck_bunny_4k_H264_30fps
3~7%
4K x264 60fps
big_buck_bunny_4k_H264_60fps
3~7%
4K x265 8bit 60FPS
Big Bunny 4K - 60 Fps 3840x2160 takes 5 seconds to start - plays 4 sec then buffers and again, not viewable
17~25%
4K x265 8bit 30FPS
LG_4K_View-the-Feeling (H265 8bit, up to 30fps) - no problems playback
17~25%
4K x265 10bit 30FPS
Samsung_UHD_Dubai-10bit-HEVC takes 5 seconds to start - plays 4 sec then buffers and again, not viewable
100%
4K x265 10bit 60FPS
Samsung_UHD_7Wonders_of_the_World_Italy (H265 10bit, 50-60fps) takes 5 seconds to start - plays 4 sec then buffers and again, not viewable
100%
4K x265 8bit HDR 30FPS
Life_of_ Pi_draft_Ultra-HD_HDR takes 5 seconds to start - plays 4 sec then buffers and again, not viewable
75%
