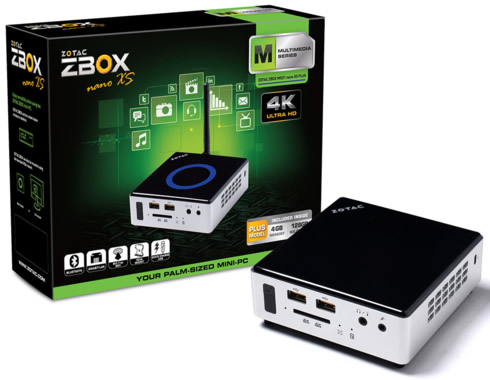

ZOTAC Injects Palm-Sized ZBOX nano XS with Double Dose of Performance
The new ZOTAC ZBOX MI521 nano XS series delivers a dual-core punch and expansive connectivity in an extra small size. New to the ZBOX MI521 nano XS series is an efficient Intel Core i3 4030U dual-core processor with Intel HD Graphics 4400. The new processor enables dual display capabilities on the ZBOX MI521 nano XS series with standard HDMI and mini-DisplayPort outputs.
A suite of Intel technologies including Clear Video HD, InTru 3D and Quick Sync Video makes the ZBOX MI521 nano XS series a great HTPC for high quality HD video playback, including CPU-intensive Hi10P formats. Bluetooth 4.0 and 802.11ac Wi-Fi technologies round out the ZBOX MI521 nano XS series features to provide compatibility with popular input devices and high-speed network connectivity to wireless home networks.
Product |
ZBOX MI521 nano XS series |
|
SKU |
ZBOX-MI521NXS |
ZBOX-MI521NXS-P |
Memory |
Support 2 x DDR3L-1600 SO-DIMM (up to 16GB) |
4GB DDR3L (up to 16GB) |
Storage |
Support mSATA SSD |
128GB mSATA SSD |
CPU |
Intel Core i3 4030U (dual-core, 1.9 GHz) |
|
GPU |
Intel HD Graphics 4400 |
|
Video Memory |
Shared Memory |
|
Display Options |
HDMI & mini-DisplayPort |
|
Card Reader |
3-in-1 (SD/SDHC/SDXC) |
|
Ethernet |
10/100/1000Mbps |
|
WiFi |
802.11ac Wi-Fi & Bluetooth 4.0 |
|
USB Ports |
2 USB 2.0 (front) 2 USB 3.0 (rear panel) |
|
Audio |
HDMI audio (bitstream) 3.5mm output 3.5mm microphone input |
|
DirectX Support |
DirectX 11 |
|
Other Features |
Intel Virtualization (VT-x & VT-d), Clear Video HD, InTru 3D, Quick Sync Video and Hyper-Threading technologies |
|
HDCP: |
Yes |
|
Windows |
Windows 7/8 32/64-bit ready |
|
