PleXWriter PX-W4824U CD-RW
3. CD Error Correction
Error Correction Tests
In the following tests we examine the reading error correction capabilities of the PleXWriter PX-W4824U.

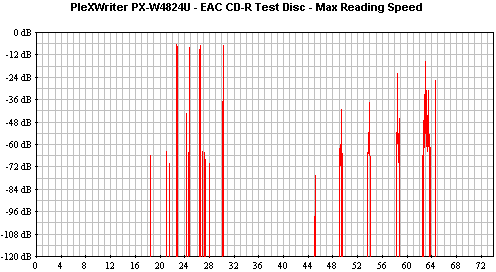

- EAC CD-R Test Disc
- Test Results (Max Reading)
At full speed, the PX-W4824U starts reporting errors at 18mins. The errors within the black triangle defect were few but they reached the -6.3 dB(A). The five scratches are not repaired giving a score of 70.1, out of 100 (max).
|
Errors total
|
Num: 153460
|
||
|
Errors (Loudness) dB(A)
|
Num: 10009
|
Avg: -75.7 dB(A)
|
Max: -6.3 dB(A)
|
|
Error Muting Samples
|
Num: 1585
|
Avg: 1.6 Samples
|
Max: 33 amples
|
|
Skips Samples
|
Num: 7
|
Avg: 10.3 Samples
|
Max:36 amples
|
|
Total Test Result
|
70.1 points (of 100.0 maximum)
|
||

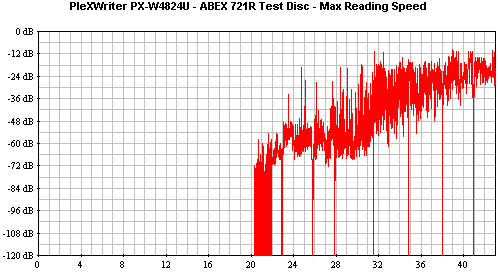

- ABEX TCD-721R
- Test Results (Max speed)
At the maximum reading speed, the drive got a score of 58.5. The drive gave many errors and the average Loudness errors level was increased over the previous test to -65.4dB(A).
|
Errors total
|
Num: 4199860
|
||
|
Errors (Loudness) dB(A)
|
Num: 82140
|
Avg: -65.4 dB(A)
|
Max: -9.7 dB(A)
|
|
Error Muting Samples
|
Num: 152755
|
Avg: 4.9 Samples
|
Max: 597 Samples
|
|
Skips Samples
|
Num: 67
|
Avg: 6.5 Samples
|
Max: 24 Samples
|
|
Total Test Result
|
58.5 points (of 100.0 maximum)
|
||

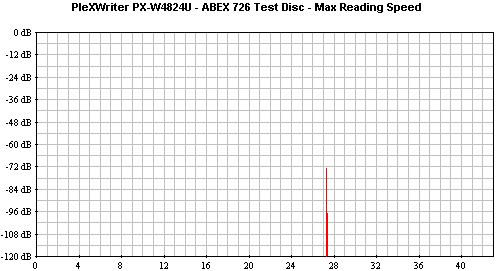

- ABEX TCD-726
- Test Results (Max Speed)
At the maximum reading speed, the drive fully repaired the errors and gave only a few errors at 27mins. The total score is very high (92.9) and the performance is very good.
|
Errors total
|
Num: 12
|
||
|
Errors (Loudness) dB(A)
|
Num: 14
|
Avg:-85.2 dB(A)
|
Max: -72.7
|
|
Error Muting Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0 Samples
|
|
Skips Samples
|
Num: 0
|
Avg: .0 Samples
|
Max: 40 Samples
|
|
Total Test Result
|
92.9 points (of 100.0 maximum)
|
||
- Conclusion
|
Test Disc
|
Reading Speed
|
Score
|
|
EAC CD-R
|
Max
|
70.1
|
|
ABEX TCD-721R
|
58.5
|
|
|
ABEX TCD-726
|
92.9
|
|
|
Average Score
|
73.83
|
|
The PleXWriter PX-W4824U gets an average 73.83 score out of 100 at our reading error correction tests.
- C2 Information accuracy
- Test Results (MAX Speed)
The C2 accuracy of the PleXWriter PX-W4824U is very good with a 98.76% accuracy score as EAC analyser software showed:
|
Test Disc
|
Reading Speed
|
ASUS CRW5224
|
|
Score
|
||
|
EAC CD-R
|
Max
|
97.4
|
|
ABEX TCD-721R
|
Max
|
98.9
|
|
ABEX TCD-726
|
Max
|
100
|
|
Average Score
|
98.76
|
|

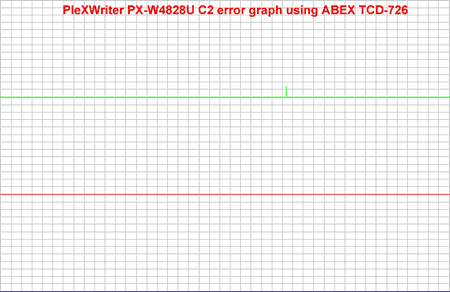

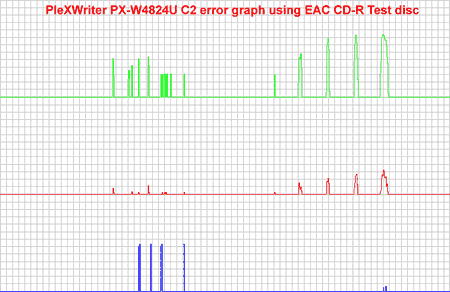

Below are the C2 error graphs as produced from EAC's analyser software...
