Gelid Liquid 240 AIO Cooler
Installing the CPU cooler requires several steps and while there is included a printed manual it took some time to get the thing started and understand what you should do. For our AMD AM4 (AMD Ryzen 5600X) processor, you have to first remove the included stock brackets and also the motherboard backplate. Gelid uses their design for the motherboard backplate for securing the cooler, which in our opinion does add time and hassle for the end user.

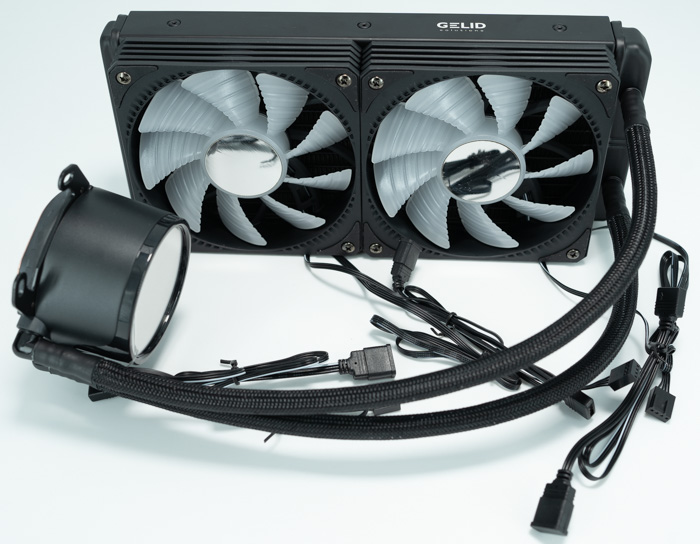

First, you have to attach the included two 120mm fans to the radiator. Note that the included fan doesn't include any arrow to showcase the rotation and direction so keep the mirror effect at the bottom area (it should point to the CPU area).

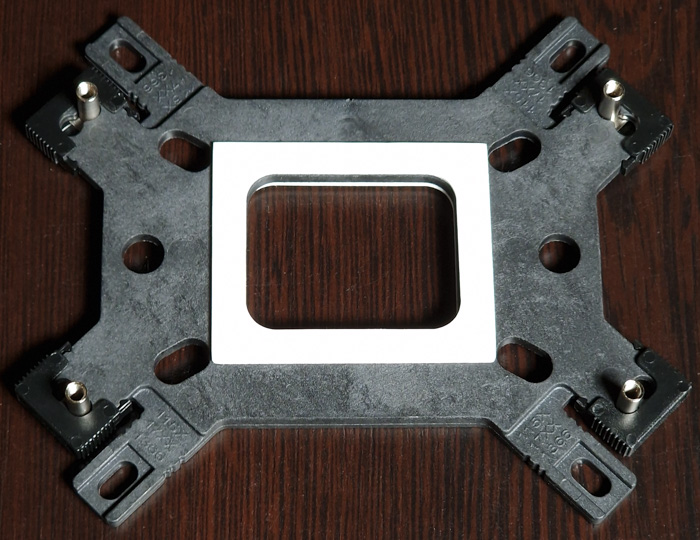

Then you need to use the included motherboard backplate. You need to check the manual to insert the metal inserts at the AM4 socket and with some plastic spacers to secure them. It's not hard, just look at the motherboard. To keep this secure, the backplate includes a plastic square which you should peel and attach to the back of the motherboard.

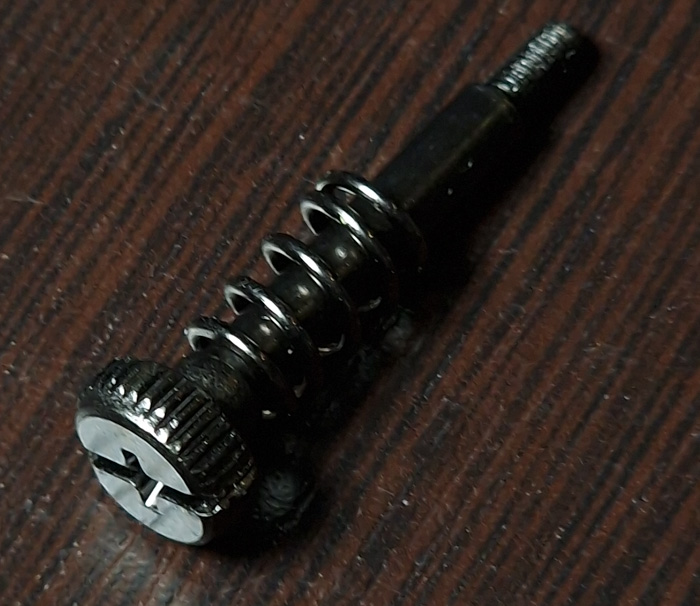

Then you need to use the pump fittings either for Intel/AMD and secure it with the included screws. This is the long AM4 screw with a spring and also you need to attach a spacer

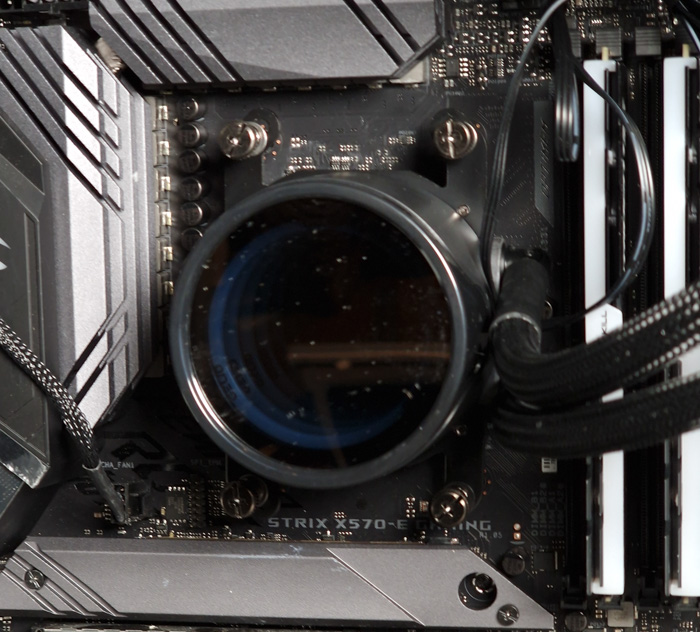

So after some time we finally installed our product on the motherboard. Note that this requires some rotation of the tubes at the pump, we feel that the included tubes should be slightly longer for easier installation. In any case, the nearby MOSFET is not affected.
We used the built-in Y-4-pin splitter and we connected the two 120mm fans at the CPU fan header of the motherboard, while the 3-pin power for the pump was installed at the AIO Pump header. Both the fan and pump were connected for the ARGB effect and we used a free 3-pin ARGB header at our motherboard.

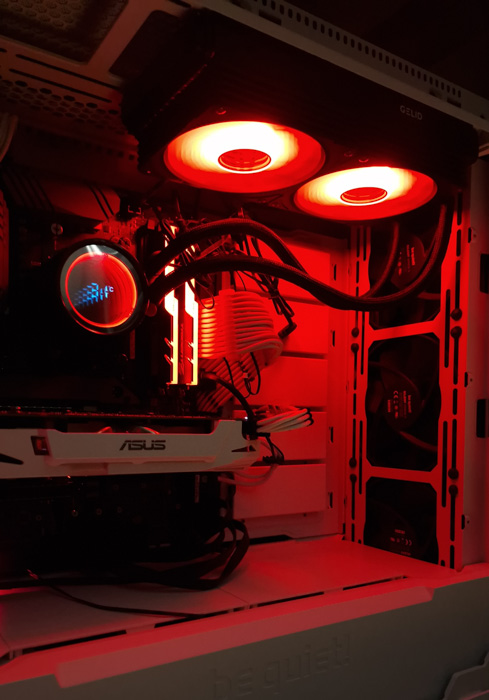

And here is what the final product will look like. Lof of RGB lighting and the mirror effect of the pump is very nice to view.
