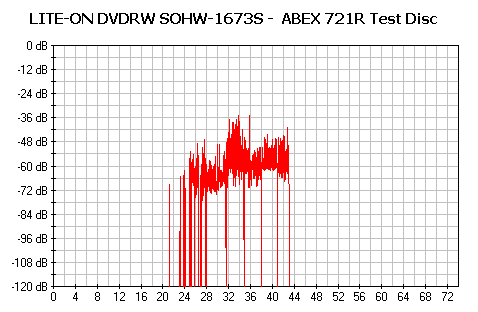

- ABEX TCD-721R
Errors total
|
Num: 918141
|
||
Errors (Loudness) dB(A)
|
Num: 51282
|
Avg:-74.1 dB(A)
|
Max: -34.7 dB(A)
|
Error Muting Samples
|
Num: 2924
|
Avg: 1.0 Samples
|
Max: 11 Samples
|
Skips Samples
|
Num: 2
|
Avg: 6.0 Samples
|
Max: 6 Samples
|
Total Test Result |
71.9 points (of 100.0 maximum) |
||
C2 Accuracy |
99.6% |
The performance according to the graph is good. From the results we see that the total error count is low, which is good and the maximum error loudness at just under -35 dB(A) is also good. Unfortunately, there were some skipped samples which prevented the drive from attaining a higher total test result score. Good performance otherwise.
- ABEX TCD-726
Errors total
|
Num: 0 |
||
Errors (Loudness) dB(A)
|
Num:0
|
Avg: 0 Samples
|
Max: 0 Samples
|
Error Muting Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0 Samples
|
Skips Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0 Samples
|
Total Test Result
|
100.0 points (out
of 100.0 maximum)
|
The behavior of drive was much better in this case where it managed to correct all the disc's errors. The result was a perfect 100.
- CD-Check Audio Test Disc
The CD-Check Test Disc is a very useful tool for evaluating the Sound Reproduction / Error correction capabilities of a CD player. The disc offers a signal combination with disc error patterns to rate the drive's ability to read music and reproduce it completely. Five tracks on the disc contain a sequence of progressively difficult tests. These tracks are referred as Check Level -1 through Check Level -5.
The tracks are reproduced (played) through a software multimedia player (i.e. Windows Media Player). Each level is considered as passed, if the tone coming out from the speakers is smooth, continuous without interruptions, skipping or looping. The higher the Check Level passed, the more reliable the sound reproduction of the tested device.
Error Level
|
1
|
2
|
3
|
4
|
5
|
LiteON
SOHW-1673S
|
5/5
|
5/5
|
5/5
|
0/5
|
0/5
|
The drive passed only the first three Check Levels of the test. The performance reveals average performance with the specific test disc. The fourth and the fifth levels include an error size of 1.125mm and 1.500mm respectively, and the drive produced continues audible clicks over those tracks.
