For our tests we used an open test air test system, to avoid interference from case fans. Then we set room temperature around 23 Celsius via A/C control. All tests are done with the same system, operating system, drivers, and software running in the background. CPU fans were controlled via software with the same curve fan and the following test system based upon AMD 7950X:

• CPU: AMD Ryzen 9 7950X
• Thermal Paste: Noctua NT-H1 thermal compound
• Open Case: StreaCom BC1 V2 Bench Table
• Motherboard: Asus ProArt X670E-CREATOR WIFI with 2007 BIOS
• Memory: 2x24GB Crucial DDR5-6000 CL48 (EXPO Profile)
• PSU: be quiet! Dark Pro 13 1300Watt
• Main Storage: Samsung 980Pro 1TB
• VGA: MSI GeForce RTX 4090 SUPRIM X 24G
• Operating system: Windows 11 x64 + latest motherboard/AMD chipset drivers installed (DirectStorage enabled drive)
• Software: OCCT Enterprise Edition v12.1.18 (2 sec interval monitor)
• Ambient room temperature ~ 23 Celsius (with AC climate control) - Environment Temperature measurements: Precision Gold N09AQ Envirometer Meter

We performed four tests depending on the CPU TDP load that can be set under Bios-> AI Tweaker-> Precision Boost Overdrive->AMD Eco Mode->

• cTDP 65Watt (real 90Watt)
• cTDP 105Watt (real 145watt)
• cTDP 170Watt (normal AMD 7950X operating from 175watt up to 190watt depending Boost)
• cTDP ~ 222Watt (via PBO at auto)

while we set the following voltages for all tests.

• CPU Core Voltage: Auto
• CPU SOC Voltage: 1.25V
• CPU VDDIO / MC Voltage: Auto
• Misc Voltage: 1.10V

At the OCCT software, we performed the Stability Test->CPU Test 15mins duration with various settings to get the maximum thermal production from the AMD 7950X.

Tests Disclaimer: Despite placing CPU voltages manually, the motherboard may supply the CPU with slightly different voltages, resulting in some cases higher temperatures that also result in higher working temperatures. Our results are valid with the above test system and using other variations may result in different results. Using other stress test software may also introduce different test results.

Before each run, we clean the CPU surface with 95% isopropyl alcohol and paper roll and we apply each thermal paste with the same methodology (central dot, small X lines, and small dots) to cover the full surface of the CPU area.

Starting from the low 65watt AMD Eco TDP, we used the following OCCT settings

• Instruction Set: Auto
• Data Set: Large
• Mode: Normal
• Load Type: Variable
• Thread Settings: Auto

The Noctua NH-D12L Chromax.black with the two offsets performed more or less the same with a small performance difference. The same applies also to the NH-U12S, D15S, and the NH-U12S.

At the 105watt AMD Eco TDP setting, we used the following OCCT settings

• Instruction Set: Auto
• Data Set: Large
• Mode: Normal
• Load Type: Variable
• Thread Settings: Auto

Increasing the TDP load at all CPU coolers will probably increase their performance differences. The Noctua NH-U14S with the -7mm offset seems to benefit up to 2.56 Celsius, the NH-U12S up to 0.84 Celsius, the NH-D12L Chromax.black not at all, and the NH-D15S Chromax.black up to 0.47 Celsius.

At the 170watt AMD TDP setting (normal AMD 7950X running TDP), we used the following OCCT settings

• Instruction Set: SSE
• Data Set: Large
• Mode: Normal
• Load Type: Variable
• Thread Settings: Auto

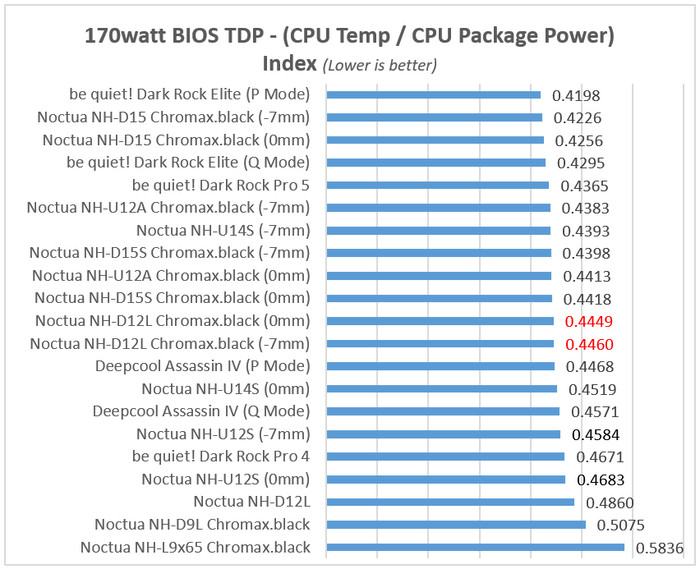

At this TDP, we don't post absolute thermal numbers, since at some point the AMD 7950X boosted up to 170TDP and other cases at 190TDP, so we only post an index that calculates the produced temperature / the total CPU package power, in other words, the smaller the index is the better performance you will gain. At this test, we see that the NH-U12S falls behind other Noctua CPU coolers, the NH-U14S with the -7mm has good performance, while the NH-D12L Chromax.black and the NH-D15S Chromax.black come close to produced results.

At the 222watt AMD TDP setting, we used the following OCCT settings

• Instruction Set: SSE
• Data Set: Small
• Mode: Extreme
• Load Type: Steady
• Thread Settings: Auto

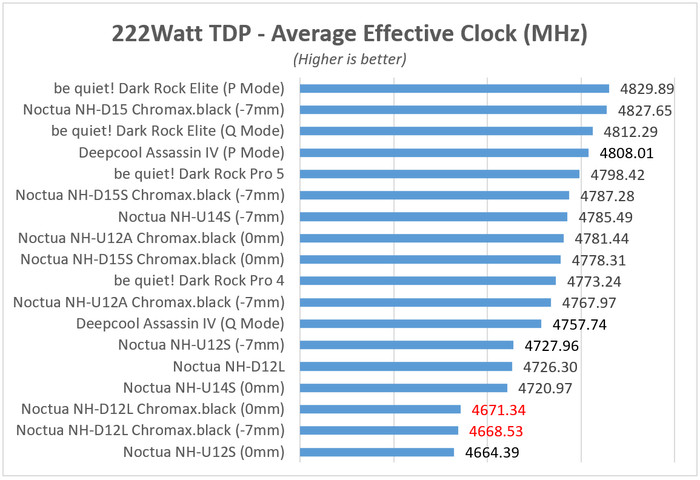

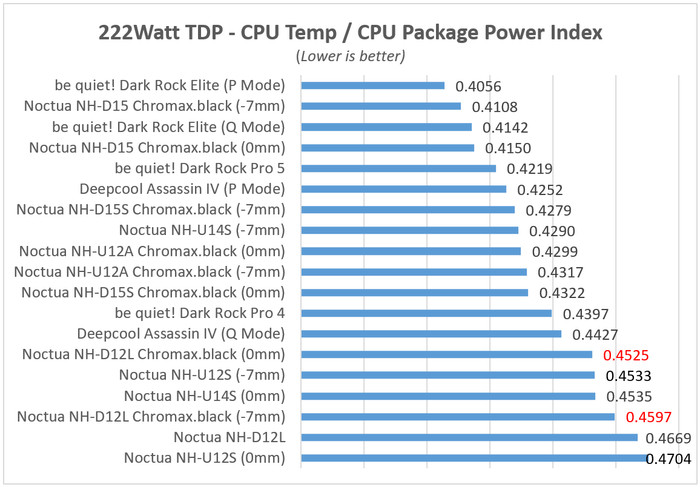

At the maximum possible TDP with the AMD 7950X for our tests, we see that the NH-U14S with the -7mm offset can handle the increased temperatures of the test, and doesn't thermal throttle. The other Noctua NH-D12L Chromax.black, the NH-D15S Chromax.black, and NH-U12S are not a good solution, at least for this high TDP.
