Shuttle Releases Temperature-resistant Barebone PC For Playback of 4K Content

Shuttle Releases Temperature-resistant Barebone PC For Playback of 4K Content

PC components Jan 19,2015 0

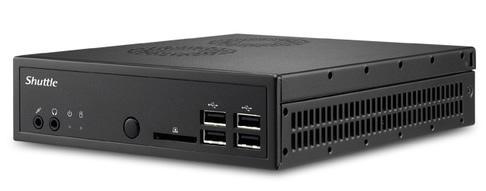

One of the most popular solutions in the Shuttle product range is now available in an alternative version. The DS81L has all the properties of the DS81, but with a 12 V supply voltage instead of the standard 19 V. This special feature enables the use of alternative, stabilised energy sources instead of the supplied 84 W power supply unit.

The motherboard of the DS81L uses the Intel H81 chipset and is therefore compatible with a large number of Intel desktop processors with LGA1150 socket (up to a TDP of 65 W). The two SO-DIMM sockets can support a total of 16 GB DDR3 memory. An SATA 6 Gbit/s port is available for 2.5" SSD or hard disk. 1x Mini-PCI-Express (half-size) and an mSATA slot offer additional expansion options, e.g. for WLAN or mSATA-SSD.

Where enough power is required, for instance, to play ultra-high-resolution 4K content (3840 x 2160 pixels), installation of an Intel Core i3 processor is recommended. The image signal can then be transmitted at 60 Hz via DisplayPort or 30 Hz via HDMI.

A dual-fan regulated heatpipe cooling system, packed in a steel case, enables operation at ambient temperatures between 0-50 °C.

Despite its small dimensions of 19 x 16.5 x 4.3 cm (DWH), the DS81L offers two Gigabit Ethernet interfaces, 2x USB 3.0, 2x DisplayPort, HDMI, audio, 2x RS-232 and card reader. At the back of the machine is a four-pin connector for remote power-on (e.g. in case of a fixed installation in an awkward position). If required, a jumper on the motherboard can put the machine in always-on mode so that it automatically boots up as soon as the operating voltage is present.

The recommended retail price for the Shuttle Barebone DS81L is EUR 166.00 (ex VAT). The machine described in this press release is available from specialist retailers Europe-wide now.

Specifications

  • Chassis
    Nettop PC with black chassis made of metal
    Dimensions: 190 x 165 x 43 mm (LWH) = 1.35 litres
    Weight: 1.3 kg net and 2.1 kg gross
    Two holes for Kensington Locks and numerous
    threaded holes (M3) at both sides of the chassis
  • Storage bay
    1x 6.35 cm / 2.5" storage bay supports one hard disk or SSD drive
    Device height: 9.5 or 12.5 mm (max.)
  • Operation System
    This system comes without operating system. It is compatible with Windows 8 / 8.1, Windows 7, Linux
  • Mainboard / Chipset / BIOS
    Mainboard: Shuttle FS81 (8 layer design)
    Chipset: Intel H81 Express Chipset
    (Intel DH82H81 PCH, code name "Lynx Point")
    AMI BIOS in 8 Mbit EEPROM with SPI interface
    All capacitors are high quality solid capacitors
    Supports hardware monitoring and watch dog functionality
    Supports Unified Extensible Firmware Interface (UEFI)
    Supports power on after power failure
  • Power Adapter
    External 84 W power adapter (fanless)
    Input: 100~240 V AC, 50/60 Hz
    Output: 12 V DC, max. 7.0 A, max. 84 W
    DC Connector: 5.5 / 2.5 mm (outer/inner diameter)
  • Processor support
    Socket LGA 1150 (H3) supports the fourth generation of
    Intel Core i7 / i5 / i3 / Pentium processors
    Maximum supported processor power consumption (TDP) = 65W
    Codename "Haswell", 22nm process technology, up to 8 MB of L3 cache
    Supports the new generation of "Haswell Refresh" processors
    Not compatible with older Socket LGA 1155 processors.
    Does not support the unlock-function of Intel K-Series processors.
    The Processor integrates PCI-Express, memory controller
    and the graphics engine on the same die (depends on processor  type)
    Please refer to the support list for detailed processor support information.
  • Processor cooling: Heat pipe processor cooling with two 60 mm fans on the upper side of the chassis
  • Memory support
    2x SO-DIMM slots with 204 pins
    Supports DDR3-1333/1600 SDRAM memory (PC3-10600/12800)
    The maximum memory clock rate depends on the processor type.
    Supports Dual Channel mode
    Supports max. 8 GB per DIMM,  maximum total size of 16 GB
    Supports two unbuffered DIMM modules of 1.5 V
  • Integrated Graphics
    The features of the integrated graphics function depend on the used processor type.
    Supports Dual-Independent-Display at Full HD 1080p resolution
    Supports Blu-ray (BD) playback with HDCP
    Supports one 4K display running at 3840 x 2160 (2160p/60Hz) high resolution when connected to its DisplayPort video output
    HDMI and DisplayPorts supports HD video plus multi-channel digital audio via a single cable
    Optional D-Sub/VGA connector
  • Mini Slots
    DS81L features two Mini expansion slots:
    1) half size Mini-PCIe, supports PCIe 2.0 e.g. for WLAN cards [5]
    2) full size mSATA, supports SATA 6G
    e.g. for Mini SATA (mSATA) flash memory cards [6]
  • Audio
    Audio Realtek ALC 662-VC High-Definition Audio
    Two analog audio connectors (3.5mm) at the front panel:
    1) 2 channel line out (head phone)
    2) microphone input
    Digital multi-channel audio output: via HDMI and DisplayPort
  • Dual Gigabit LAN Controller
    Dual Realtek 8111G Ethernet network controller (Gigabit)
    Supports 10 / 100 / 1.000 MBit/s operation
    With two RJ45 ports (dual network) supports Teaming
    Supports WAKE ON LAN (WOL)
    Supports network boot by Preboot eXecution Environment (PXE)
  • Drive connectors
    1x Serial-ATA III, 6 Gb/s (600 MB/s) bandwidth
    1x Serial-ATA II, 3 Gb/s (300 MB/s) bandwidth
    With Serial-ATA power connector (onboard)
    Supports Unified Extensible Firmware Interface (UEFI) [2]
  • Card Reader
    Integrated card reader
    Supports SD, SDHC and SDXC memory flash cards
    Supports boot up from SD card
  • Front Panel connectors
    Microphone input
    Audio Line-out (headphone)
    4x USB 2.0
    SD card reader
    Power button
    Power LED (blue)
    HDD LED (yellow)
  • Back Panel connectors
    1x HDMI connector
    2x DisplayPort connectors (DP, supports 4k resolution)
    Optional 1x D-Sub VGA connector (Accessory PVG01)
    2x USB 3.0
    2x USB 2.0
    2x Gigabit LAN (RJ45)
    2x RS232 serial ports (5V/12V, 1x switchable to RS422 / RS485)
    DC-input connector for external power adapter
    Four pin connector (2.54 mm pitch) supports
    - external power on button
    - Clear CMOS function
    - +5V DC voltage for external components
    Perforation for optional Wireless LAN antennas (2 holes)
  • Other onboard connectors
    Power on after power fail (hardware solution, Jumper 4) [8]
    1x analog VGA graphics output (2x10 pins, 1mm pitch) [9]
    1x USB 2.0 (4 Pins)
    2x serial interface (COM) occupied for back panel connectors
    Fan connector (4 pins) occupied by the cooling system
    LPC interface (2x10 pins)
    Audio connectors (7x2 pins)
    Speaker connector (2 pins)
    Power connector for SATA drives (4 pins)
