SONY DRU-710A Dual DVD±RW Recorder - Page 25

Updated Firmware Performance (v.BYX2) - Page 1

Sony recently released a new firmware version that aims to further boost the performance of the SONY DRU-710A burner. It provides 12X DVD-R burning speed, instead of 8X that previous firmware versions supported. It can also burn double layer media at 4X. Reading performance is not changed, but DRU-710A was already a very good and fast reader, so there is no need to optimize reading performance.

Sony also tried to optimize writing speed for certain media that could not be burned at maximum naming speed. For example, the Philips DVD+R 16X certified media could only be burned at 8X. With this new firmware, you can burn this media at 12X. You can see a complete media support list in the table below. Unfortunately, only Verbatim double layer media can be burned at 4X, but we hope to see further improvements at this point.

DVD-R

DVD+R

4M SYS 202C1/52 [ 4x ]
AML /52 [ 4x ]
AN30 /52 [ 4x ]
AN31 /52 [ 4x ]
AN32 /52 [ 4x ]
Auvistar /50 [ 2x ]
BeAll G00001/50 [ 2x ]
BeAll G40001/52 [ 4x ]
BeAll G80001/52 [ 4x, 6x, 8x ]
CMC MAG. /50 [ 2x ]
CMC MAG. AE1/52 [ 4x, 6x, 8x, 12x ]
CMC MAG. AF1/52 [ 4x ]
DATA TRACK /52 [ 4x ]
DAXON004 /52 [ 4x ]
DAXON008S /52 [ 4x, 6x, 8x, 12x ]
DKM_01 /52 [ 4x ]
Dvsn /52 [ 4x ]
FORNEX001 /50 [ 2x ]
FORNEX101 /52 [ 4x ]
FUJIFILM03 /52 [ 4x, 6x, 8x ]
GSC001 /50 [ 2x ]
GSC001 /52 [ 4x ]
GSC002 /52 [ 4x ]
GSC003 /52 [ 4x, 6x, 8x ]
INFODISC-R01/52 [ 4x ]
INFODISC-R20/52 [ 4x, 6x, 8x ]
ISSM 01 /52 [ 4x ]
LD /50 [ 2x ]
LEADDATA /50 [ 2x ]
LEADDATA S03/52 [ 4x, 6x, 8x ]
LEADDATA01 /52 [ 4x ]
LGE04 /52 [ 4x ]
LGE08 /52 [ 4x, 6x, 8x ]
LONGTEN 001 /52 [ 4x ]
LONGTEN 009 /52 [ 4x ]
MAM4XG01 /52 [ 4x ]
MBI /50 [ 2x ]
MBI 01RG20 /52 [ 4x ]
MBI 03RG30 /52 [ 4x, 6x, 8x ]
MCC 00RG200 /50 [ 2x ]
MCC 01RG20 /52 [ 4x ]
MCC 02RG20 /52 [ 4x, 6x, 8x ]
MCC 03RG20 /00 [ 4x, 6x, 8x, 12x ]
MCI4XG01 /52 [ 4x ]
MCIG01 /50 [ 2x ]
ME 153 /52 [ 4x ]
MEI 00V001 /50 [ 2x ]
MUST 001 /52 [ 4x ]
MXL RG01 /50 [ 2x ]
MXL RG02 /52 [ 4x ]
MXL RG03 /52 [ 4x, 6x, 8x ]
NANYA-JC001 /52 [ 4x ]
ONIDTECH /52 [ 4x ]
OPTODISCK001/50 [ 2x ]
OPTODISCK001/52 [ 4x ]
OPTODISCR004/52 [ 4x ]
OPTODISCR008/52 [ 4x, 6x, 8x ]
Plasmon1A /52 [ 4x, 6x, 8x ]
POSG04 /52 [ 4x ]
POSG06 /52 [ 4x, 6x, 8x ]
POSJ 01 /50 [ 2x ]
PRINCO /50 [ 2x ]
PRINCO /52 [ 4x ]
PRINCO8X01 /52 [ 4x, 6x, 8x ]
PRINCO8X02 /52 [ 4x, 6x, 8x ]
ProdiscF01 /52 [ 4x, 6x, 8x ]
PRODISCG02 /50 [ 2x ]
ProdiscS03 /52 [ 4x ]
ProdiscS04 /52 [ 4x, 6x, 8x ]
PVC001001 /00 [ 2x ]
PVCR001002 /52 [ 4x ]
RITEKG03 /50 [ 2x ]
RITEKG04 /52 [ 4x ]
RITEKG05 /52 [ 4x, 6x, 8x ]
RITEKG06 /52 [ 4x, 6x, 8x ]
RITEKM02 /52 [ 4x ]
SKC Co.,Ltd./52 [ 4x ]
SKC M801 /52 [ 4x, 6x, 8x ]
SONY /50 [ 2x ]
SONY04D1 /52 [ 4x ]
SONY08D1 /52 [ 4x, 6x, 8x, 12x ]
TAIYOYUDEN /50 [ 2x ]
TAROKO-MX4 /52 [ 4x ]
TDKG02000000/50 [ 2x ]
TTG01 /52 [ 4x ]
TTG02 /52 [ 4x, 6x, 8x ]
TTH01 /52 [ 4x, 6x, 8x ]
TTH02 /00 [ 4x, 6x, 8x ]
TYG01 /52 [ 4x ]
TYG02 /52 [ 4x, 6x, 8x ]
UME01 /52 [ 4x, 6x, 8x ]
VANGUARD /52 [ 4x ]
VDSPMSAB 01 /52 [ 4x ]
VDSPSAB 01 /52 [ 4x ]
Yi Jhan 001 /52 [ 4x ]

AML /001/00 [ 4x ]
AML /002/00 [ 4x, 6x, 8x ]
BeAll000/P40/00 [ 4x ]
BeAll000/P80/00 [ 4x, 6x, 8x ]
CMC MAG /E01/00 [ 4x, 6x, 8x ]
CMC MAG /F01/00 [ 4x ]
CMC MAG /F01/01 [ 4x, 6x, 8x ]
CMC MAG /M01/00 [ 4x, 6x, 8x, 12x, 16x ]
CMC MAG /R01/00 [ 4x ]
DAXON /AZ1/00 [ 4x ]
DAXON /AZ2/00 [ 4x, 6x ]
DAXON /AZ3/00 [ 4x, 6x, 8x, 12x, 16x ]
DDT 01 /001/01 [ 4x ]
DT-D02 /02 /00 [ 4x ]
DT-D03 /004/00 [ 4x, 6x, 8x ]
EMDP /000/00 [ 4x ]
GSC502 /002/00 [ 4x ]
GSC503 /H01/00 [ 4x ]
INFODISC/R10/02 [ 4x ]
INFODISC/R20/00 [ 4x, 6x, 8x ]
INFOME /R20/00 [ 4x, 6x, 8x ]
ISSM /001/00 [ 4x, 6x, 8x ]
LD /001/00 [ 2.4x ]
LD /A02/00 [ 4x ]
LD /S03/00 [ 4x, 6x, 8x ]
LONGTEN /002/00 [ 4x ]
MAM /M02/00 [ 4x, 6x, 8x ]
MAXELL /001/00 [ 4x ]
MAXELL /002/00 [ 4x, 6x, 8x ]
MAXELL /003/00 [ 4x, 6x, 8x, 12x, 16x ]
MBIPG101/R03/00 [ 4x ]
MBIPG101/R04/01 [ 4x, 6x, 8x ]
MBIPG101/R05/01 [ 4x, 6x, 8x, 12x, 16x ]
MCC /001/00 [ 4x ]
MCC /002/00 [ 4x ]
MCC /003/00 [ 4x, 6x, 8x ]
MCC /004/00 [ 4x, 6x, 8x, 12x, 16x ]
MEDIA ID/001/00 [ 4x ]
MPOMEDIA/001/00 [ 2.4x ]
MPOMEDIA/040/00 [ 4x ]
MPOMEDIA/080/00 [ 4x, 6x, 8x ]
MUST /002/01 [ 4x, 6x, 8x ]
MUST 002/ /02 [ 4x ]
NANYA /CHX/00 [ 4x, 6x, 8x ]
NANYA /CLX/00 [ 4x, 6x, 8x ]
NANYA /DR /00 [ 2.4x ]
NANYA /RJB/00 [ 4x ]
OPTODISC/OP1/00 [ 2.4x ]
OPTODISC/OP2/00 [ 2.4x ]
OPTODISC/OR4/00 [ 4x ]
OPTODISC/OR8/00 [ 4x, 6x, 8x ]
Philips /081/00 [ 4x, 6x, 8x ]
PHILIPS /C08/00 [ 4x, 6x, 8x ]
PHILIPS /C16/01 [ 4x, 6x, 8x, 12x ]
Plasmon /c01/00 [ 4x, 6x, 8x ]
PRODISC /R01/00 [ 2.4x ]
PRODISC /R02/00 [ 4x ]
PRODISC /R03/00 [ 4x, 6x, 8x ]
PRODISC /R04/04 [ 4x, 6x, 8x, 12x, 16x ]
PRODISC /R05/01 [ 4x, 6x, 8x ]
RICOHJPN/R00/00 [ 4x ]
RICOHJPN/R01/02 [ 4x ]
RICOHJPN/R02/03 [ 4x, 6x, 8x ]
RICOHJPN/R03/04 [ 4x, 6x, 8x, 12x, 16x ]
RITEK /M02/01 [ 4x ]
RITEK /R01/00 [ 2.4x ]
RITEK /R02/01 [ 4x ]
RITEK /R03/01 [ 4x, 6x, 8x ]
RITEK /R03/02 [ 4x, 6x, 8x ]
RITEK /R04/01 [ 4x, 6x, 8x, 12x, 16x ]
SKYMEDIA/R01/00 [ 2.4x ]
SONY /D01/00 [ 4x ]
SONY /D11/00 [ 4x, 6x, 8x ]
SONY /D21/00 [ 4x, 6x, 8x, 12x, 16x ]
TDK /001/00 [ 4x ]
TDK /002/00 [ 4x, 6x, 8x ]
TDK /003/00 [ 4x, 6x, 8x, 12x, 16x ]
ULTRAN /202/00 [ 4x ]
VDSPMSAB/001/01 [ 4x ]
WINGSHIN/001/31 [ 4x, 6x, 8x ]
WINGSHIN/G04/00 [ 4x ]
YUDEN000/T01/00 [ 4x ]
YUDEN000/T01/01 [ 4x ]
YUDEN000/T02/00 [ 4x, 6x, 8x ]
YUDEN000/T03/00 [ 4x, 6x, 8x, 12x, 16x ]

DVD-RW

DVD+RW

CMCW02 /00 [ 2x ]
CMCW03 /00 [ 4x ]
DAXON_RW2X01/00 [ 2x ]
JVC/VictorT7/00 [ 1x ]
JVC0VictorD7/00 [ 4x ]
JVC_VictorW7/00 [ 2x ]
MCC 00RW11N9/00 [ 1x ]
MCC 01RW11n9/00 [ 2x ]
MCC 01RW4X /00 [ 4x ]
OPTODISCK001/20 [ 1x ]
OPTODISCK001/21 [ 2x ]
OPTODISCW002/21 [ 2x ]
OPTODISCW004/21 [ 4x ]
PRINCO /20 [ 1x ]
PRINCO /21 [ 2x ]
PRINCORW0004/31 [ 2x ]
Prodisc DW04/21 [ 2x ]
Prodisc DW06/00 [ 4x ]
ProdiscDVDRW/00 [ 1x ]
PVCW00D002K9/21 [ 2x ]
PVCW00V00245/00 [ 2x ]
RITEK000V11A/00 [ 1x ]
RITEKW01 /00 [ 2x ]
RITEKW04 /00 [ 2x ]
SONY000000U9/00 [ 1x ]
TDK501saku]3/20 [ 1x ]
TDK502sakuM3/00 [ 2x ]
TDK601saku /00 [ 4x ]

CMC MAG /W01/00 [ 2.4x ]
CMC MAG /W02/00 [ 4x ]
DAXON /D41/00 [ 4x ]
DAXON /D42/00 [ 4x ]
INFODISC/A01/00 [ 2.4x ]
INFODISC/A10/00 [ 4x ]
MBIPG101/W03/00 [ 2.4x ]
MBIPG101/W04/00 [ 4x ]
MCC /A01/00 [ 2.4x ]
MKM /A02/00 [ 4x ]
NANYA /DRW/00 [ 4x ]
NANYASC /DRW/00 [ 2.4x ]
OPTODISC/OP1/00 [ 2.4x ]
OPTODISC/OP4/01 [ 4x ]
PHILIPS /010/02 [ 4x ]
PHILIPS /041/00 [ 4x ]
PRODISC /W01/00 [ 2.4x ]
PRODISC /W02/00 [ 4x ]
RICOHJPN/W01/00 [ 2.4x ]
RICOHJPN/W11/01 [ 4x ]
RITEK /001/01 [ 2.4x ]
RITEK /004/30 [ 4x ]
RITEK /W04/00 [ 4x ]
SENTINEL/W01/00 [ 2.4x ]
SENTINEL/W02/00 [ 4x ]
SONY /S11/00 [ 4x ]

DVD+R9 (Double Layer media)

CMC MAG /D01/00 [ 2.4x ]
INFOME /D01/00 [ 2.4x ]
MKM /001/00 [ 2.4x, 4x ]
PHILIPS /CD2/00 [ 2.4x ]
PRODISC /D01/00 [ 2.4x ]
RICOHJPN/D00/01 [ 2.4x ]
RITEK /D01/01 [ 2.4x ]

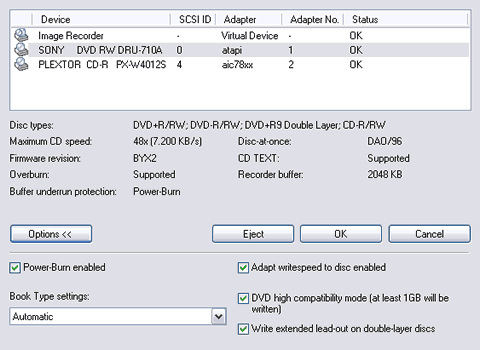

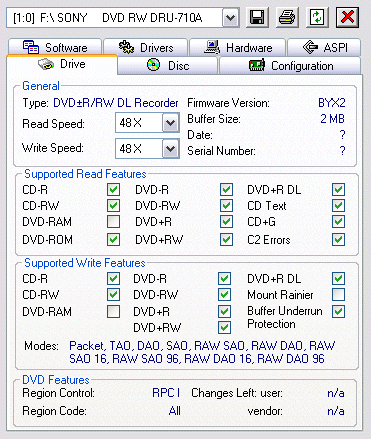

The bolded media are the media that we tested with this new firmware. Below are the drive's main specs as given by Nero CD/DVD Speed, DVDInfoPro and VSO Inspector with the new BYX2 firmware:
