SONY DRU-710A Dual DVD±RW Recorder - Page 5

Protected Disc Tests
- Reading Tests

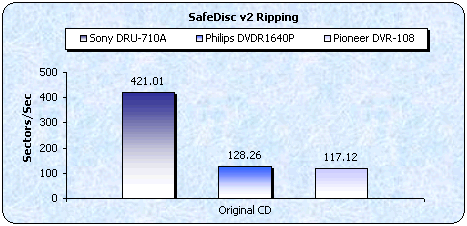

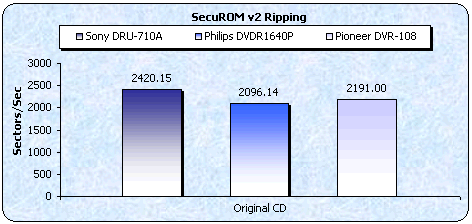

To create the image of the various protected titles to the hard disk, we used Alcohol 120% software and the appropriate settings, according to the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.

Game Title
Protection Scheme
Duration
Reading speed
PSX "NBA Jam Extreme"
Lybcrypt
3:42 min
484 sectors/sec
Serious Sam The Second Encounter
SafeDisc v.2.50.051
13:45 min
421 sectors/sec
VRally II
SecuROM v.2
2:52 min
2420 sectors/sec

The DRU-710A drive was fast while ripping SecuROM and SafeDisc protected games. With PSX Philips leads the race.

- Writing Tests

The Sony DRU-710A supports the DAO-RAW writing mode. For checking the drive's EFM correction status, we used 3 different game titles with different SafeDisc 2 versions having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (at maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.

  • Fifa 2004 - Safe Disc v3.1x
  • The Sims Superstar - Safe Disc v2.9x
  • The Sims Unleashed - Safe Disc v2.8x
  • Serious Sam Second Encounter - Safe Disc v2.51.021
  • Max Payne - Safe Disc v2.51.020

The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.

Drive

Fifa 2004
SD v3.1x

Sims Superstar
SD v2.9x
Sims Unleashed
SD v2.8x
Serious Sam-Second Encounter
SD v2.50.051
Max Payne
SD v2.51.020
EFM OFF
EFM ON
EFM OFF
EFM ON
EFM OFF
EFM ON
EFM OFF
EFM ON
EFM OFF
EFM ON
Toshiba
SD-M1502
No
Yes
Creative CD5233E

SONY DRU700A

The drive's full Safedisc2 backup capabilities reached only up to v2.8x. Newer versions are a problem for the drive.
