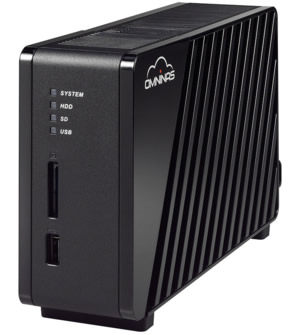

Shuttle is now launching the KS10, a storage solution for NAS entry-level users. This network-based one-bay storage solution is suitable for storing files (e.g. documents, music and photos) on the local network, for location-independent data backup or for setting up your own private cloud.

The device consumes less than 6 W in standby mode and 12 W during normal operation. It is suitable for 3.5" hard disks up to at least 4 Terabytes and has further USB ports for external storage devices and printer. Devices connected by USB cable as well as memory cards in the built-in SD card reader can be shared over the network. The Gigabit Ethernet network connection enables data transfer speeds of up to 80 MB/s when reading and up to 60 MB/s when writing. In addition, a built-in, access-protected WiFi hotspot can be enabled for communication with wireless devices.

The KS10 also offers simple server services for FTP, DLNA and iTunes. Also on board are functions such as Wake-On LAN, Ethernet and a scheduler for NAS operating time.

Hardware:

• Chassis
  Robust black plastic chassis with large rubber feet
  Dimensions: 124 mm (H) x 60 mm (W) x 205 mm (L) = ca. 1.5 litres
  Weight: 550 g
  Kensington Security Slot at the back panel (also called a K-Slot or Kensington lock) as a part of an anti-theft system
• Storage Bay, Hard disk support
  One storage bay (storage drive not included)
  Supports one 8.9 cm (3.5") hard disk drive up to 4 TB capacity (or more)
  Easy screw-free hard disk installation (no tools required).
  Supports hard disk spin-down timer
  Supports check/format disk, SMART information report, disk usage status report
  Hard disks must support SMART temperature feature with temperature sensor
• Network connector / IP setting
  1x Gigabit LAN (RJ45, rear)
  Supports Wake-on-LAN (WOL) [4]
  Supports IEEE P802.3az Energy Efficient Ethernet (EEE)
  IP Configuration: Supports Static IP or Auto IP by DHCP server
  Supports Hostname/Groupname
• Integrated WLAN AP
  Wireless LAN Access Point / Hotspot (can be enabled/disabled)
  IEEE 802.11 b/g/n (max. 54 Mbit/s)
  Encryption methods: WEP 64/128 bits, WPA, WPA2
  Frequency band: 2.4 GHz
  Bandwidth settings: 20 and 40 MHz
• USB Connectors
  1x USB 2.0 (type A, front), supports Auto-Copy function
  1x USB 2.0 (type A, rear)
  Both USB ports support external devices like hard disks, flash drives,
  printers, digital camera and USB hubs.
  Memory can be shared to local network.
• Card Reader
  Buillt-in card reader in the front panel
  Supports SD, SDHC and SDXC flash memory cards
  Supports Auto-Copy function
• Buttons (rear)
  Main power button
  Reset button (hole) for admin passwort reset
• LED Indicators
  KS10 comes with six LED indicators with the following behavior:
  1) System LED: dual colour (operating mode/error: blue/red)
  2) HDD LED: dual colour (access/error: blue/red)
  3) SD card reader LED: single colour (access: blue)
  4) USB LED: single colour (access/connect: blue)
  5) LAN speed LED (10/100 Mbps: green, 1000 Mbps: orange)
  6) LAN activity LED (access/link: blinking green)
• CPU / RAM / OS
  Processor: Marvell 88F6707 800 MHz, ARMv7 compliant SOC
  DRAM memory size: 256 MB DDR3
  Flash memory size: 1 Gb
  Operating system: Embedded Linux
• Power Adapter
  External 40W AC/DC power adapter (fanless), 19V / 2.1A
  AC Input: 100~240V AC, 50~60Hz
  Automatic voltage adjust
  Dimensions: 89.5 x 37 x 26.5 mm (LWH)
  DC Connector: 5.5/2.5mm (outer/inner diameter)
• Fanless cooling system
  Low noise operating thanks to a fanless cooling design.
  Make sure the NAS device is in a well ventilated area.
  The System also shuts down when the hard disk temperature exceeds 65 °C / 149°F. [2]
• Accessories
  Quick Installation Guide
  AC Power adapter (40 W) with AC power cord (plug depends on region)
  Ethernet cable, ca. 150 cm
  Driver CDROM with NAS finder software (Windows & Mac) and documentation

Functionality:

• Web User Interface
  The device settings are made through a web browser on a computer, which is connected to the same local subnet. 12 languages are supported: English, German, French, Spanish, Italian, Dutch, Danish, Russian, Turkish, Chinese (simple+trad.) and Japanese. The OMNINAS Web Interface is particularly user friendly thanks to its simple structure. The OMNINAS Wizard is your guide during the initial setup.
• Finder Software
  The OMNINAS Finder Software Tool is used to detect the OMNINAS system in the local network (within the same subnet). It can start the Web User Interface in your default browser and can map/unmap the internal and external storages of the OMNINAS to a drive letter of your PC.
• APPs for mobile devices
  You can use an App to upload and share files from iOS and Android devices like iPhone, iPAD, Android phone and Android tablet.
  Just lock for the appropriate "OMNINAS" app on one of these websites:
  Android: https://play.google.com/store/apps/details?id=com.shuttle.omninas2
  iOS: http://itunes.apple.com/nz/app/omninas/id543929833
• Networking Services
  Samba Server (SMB file sharing)
  with up to 256 share folders, up to 256 users and up to 256 concurrent connections
  FTP Server (File Transfer Protocol with SSL/TLS support)
  Apple File Protocol (AFP)
  DLNA Media Server
  iTunes Media Server
  Printer Server (supports USB printers)
  BT download (scheduled and without PC)
  External device sharing (via USB or card reader)
  NTP support for scheduled time synchronization (RTC integrated)
  Wake on LAN (WOL)
• System Services
  Firmware upgrade (online live update or offline manual update)
  Time-Zone settings
  Factory reset function
  System log report
• Backup functions
  Quick Auto Copy for external storage connected to front USB (also PTP camera [3]) or card reader
  NAS to USB storage backup (scheduled or immediately)
  NAS to NAS backup (scheduled or immediately)
• Disk Management
  HDD Spin down timer
  Check Disk
  Disk usage status management
  Disk Format
  SMART information report
• File Systems
  Internal: XFS
  External: EXT2, EXT3, EXT4, XFS, NTFS, FAT, FAT32
• System Requirements
  - Workstation OS: MS Windows XP SP3, Mac OS X 10.4, Apple Safari 3.0,
  Linux kernel 2.6.x or later
  - Smart phone OS: iOS 4.2, Android 2.3 or later
  - Browser: MS Internet Explorer 7.0, Firefox 3.x, Google Chrome, Apple Safari 3.0 or later
  - Router for Internet connection
• Standby Mode
  After a certain time of inactivity the system will enter power saving (standby) mode.
  This time can be set under: Settings - General - Power Saving Time Setting
  You can select a time from 10 minutes up to 5 hours.
• Power on/off functions
  Scheduled power on/off - simple configuration for each day of the week
  Power Recovery: Auto restart after power failure
  Wake on LAN (WOL) [4]
