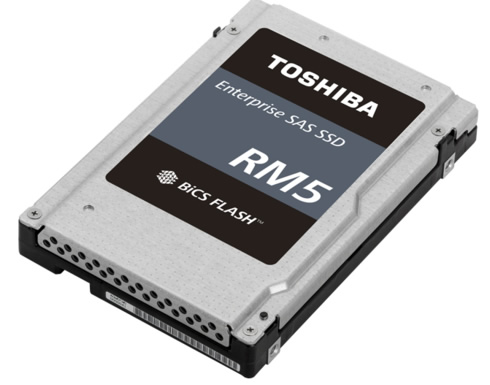

Toshiba unveiled a new category of SAS SSDs designed to replace SATA SSDs in server applications. The RM5 12Gbit/s value SAS (vSAS) series features capacity, performance, reliability, manageability and data security advantages - at a price that obsoletes SATA SSDs.

Designed with affordability and server applications in mind, Toshiba's RM5 vSAS series seeks to provide a cost-effective and higher performing solution to overcome the bottlenecks that are inherent with SATA today. Where SATA drives often use SAS expanders to scale out, RM5 enables the use of native SAS from end-to-end, eliminating the need for protocol translation to SATA.

Featuring Toshiba's BiCS FLASH TLC (3-bit-per-cell) 3D flash memory, the RM5 series will initially be available in capacities up to 7.68TB2 with a single 12Gb/s port, SFF-8639 connector and in a 2.5" form factor.

Key specifications

• Capacity: 960GB, 1.92TB, 3.84TB, 7.68TB
• NAND: BiCS Gen. 3 TLC
• Interface: 12Gbit/s SAS, single-port
• Form Factors: 2.5” 15mm
• Performance
  • Sequential Read: up to 838MB/s
  • Sequential Write: up to 650MB/s
  • Random Read: up to 150K IOPS
  • Random Write: 35K IOPS
  • Random Mixed 90/10: 110K IOPS
  • Latency Read/Write: 140/60μs
• Endurance: 1 DWPD
• MTTF: 2.5 million hours
• Warranty: up to 5-year
• Power
  • Active: up to 9W
  • Idle: 2.5W
• Temperature
  • Operating: 0°C to 70°C
  • Non-operating: -40°C to 70°C
