24x Slim CD-RW Combo Roundup Vol.1- Page 2

- LiteOn LTC-2408IMX features

SMART- BURN avoiding Buffer Under Run error, Automatically adjusting writing strategy & running OPC to provide the best burning quality

SMART-X Smart Monitoring & Adjusting Read-speed Technology for eXtraction

DFS� Floating Double Suspension System to reduce vibration & noise during recording & reading

- Specifications

Speed:	Writing: 24x ( 3600KB/sec ) Zone-CLV
	Rewriting: 12x ( 1800KB/sec ) Zone-CLV
	Reading:
	CD: 24x ( 3600KB/sec ) CAV ( 4x ~ 24x ), DAE Maximum Speed 24x CAV
	DVD: 8x ( 10800KB/sec ) CAV ( 1.7x ~ 8x )
Access Time:	DVD: 100 ms
	CD: 95ms
Writing Mode:	TAO (Track-At-Once)
	DAO (Disc-At-Once)
	SAO (Session-At-Once)
	Raw Mode Burning
	OverBurn
	Fixed Packet, Variable Packet, Multi-Session
Interface:	USB2.0
Data Buffer:	2 MB
Disc Formats:	DVD: DVD family formats, single/dual layer ( PTPT, OPT), DVD+R/RW, DVD-R/RW
	CD: CD family, CD-R & CD-RW discs ( up to 99min. )
Configurations:	Dimensions: 138 ( W ) x 24.7 ( H ) x 177 ( D ) mm
	Weight: 420g

The maximum supported writing speed is 24x (Z-CLV) for CD-R and 12x (Z-CLV) for CD-RW. The 24x (CAV) speed is also the supported reading speed for the CD-R and the HS-RW media. The maximum reading speed for DVD-ROM is 8x CAV ( 1.7x ~ 8x ).

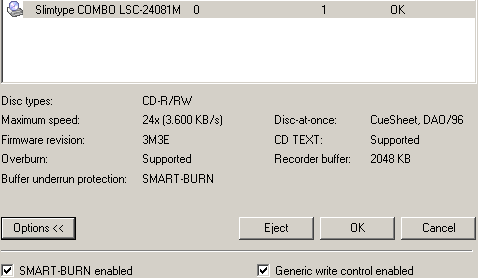

The LiteOn drive supports either the USB 1.1 or the USB2.0 interface. For writing/rewriting, the SMART-BURN® function and the 2MB cache buffer can avoid buffer underrun as well as getting the best writing quality by smartly adjusting the writing strategy. Besides, the SMART-X function adjusts the CD-DA / VCD / DVD data extraction to a maximum allowable speed, according to both data request rate from host and the quality of the inserted disc.

The drive is compliant to the RPCII regulations, allowing a user to change the region code of the drive 5 times.

- The package

The retail package includes the 24x combo drive, a USB2.0 cable, a Power AC Adapter and an audio cable, allowing you to connect the drive to external speakers.

The attached CD-ROM's contain the USB storage drivers for Win98 users, Nero Ver.5.5 for Windows, In CD packet writing software, a user manual in English and PowerDVD for DVD playback.

In the retail package you can also find a blank multi-speed CD-R and a blank multi-speed CD-RW disc.

The severe design of LiteOn LSC-24081MX provides a stylish overall appearance, combined with a very slim structure. The dimensions of the drive are 24.7 x 177 x 138 mm (WxLxH) and its weight is approximately 420gr.

The front panel of the drive is in fact the drive's front-opened loading tray. The eject button is placed next to the operation LED and the emergency eject button.

On the rear panel, there are the USB 1.1/2.0 connector, the power adapter ports and an audio line output, in case you want to connect the LiteOn LSC-24081MX to external speakers and use it as an audio playback device.
