NEC ND-3520A Burner - Page 24

DVD+R DL - Page 2

- Writing Quality

In order to test the NEC ND-3520A DVD+R DL writing quality, we used the LiteOn SOHD-167T and the Plextor PX-712SA drives.

• CMC Magnetics Double Layer media @ 2.4X

• Philips Double Layer media @ 2.4X

• Ricoh Double Layer media @ 2.4X

• Traxdata Double Layer media @ 2.4X

• Verbatim Double Layer media @ 4X

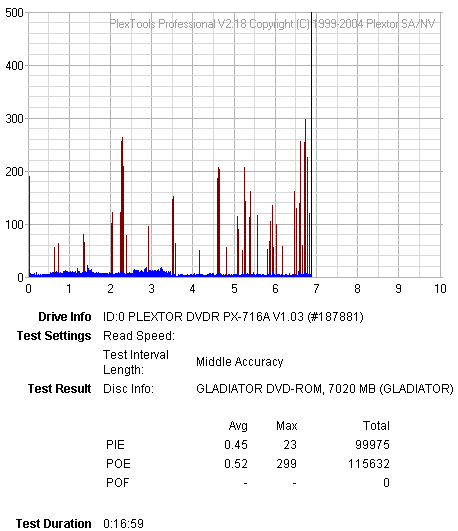

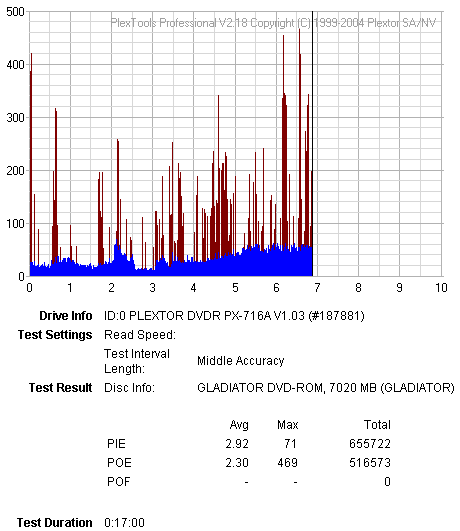

With all media tested, the reported PI error rates were lower than the 280 limit according to the Plextools scans. The NEC ND-3520A gave again, an image of a very good quality burner, even with Double Layer media. It should be noted that CDRInfo tested all double layer media supported by the burner.

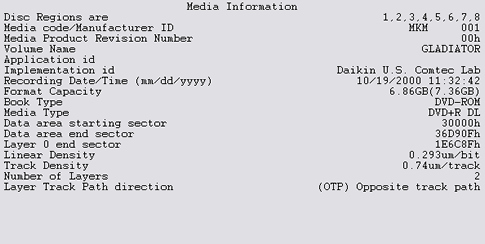

In the following screenshots, you can see for reference reasons, the media info reported by DVDInfoPro software for the Double Layer discs we burned. You can see that the default booktype setting for double layer media is set to DVD-ROM. This ensures maximum compatibility with stand-alone DVD Players.
