Datawrite Media Tests - Page 14

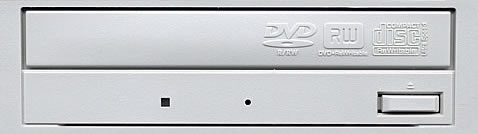

NEC ND-3520A ( v1.04)

Drive	NEC ND-3520A
Media	DVD		CD
Transfer Rate Write	+R	16x (9 - 22MBytes/sec)	-R	48x (3000-7200kBytes/sec)
	+R9	4x (5.5 MBytes/sec)
		2.4x (3.3 MByte/sec)
	+RW	8x (11 MBytes/sec)
			-RW	24x (3000-3600kBytes/sec)
	-R	16x ( 9 - 22MBytes/sec)
	-RW	6x (8.2MBytes/sec)
Transfer Rate Read		DVD-R 16x CAV (max 22000 kb/s)	CD-R 48x CAV (max 4800 kb/s)
		DVD+R 16x CAV (max 22000 kb/s)	CD-RW 16x CLV (max 2400 kb/s)
		DVD+R9 4X CLV (5500 KByte/s)
Mechanism	motorized Tray load mechanism for horizontal and vertical use
Interface	IDE / ATAPI
Burst Transfer Rate	PIO mode 4 / Ultra DMA 33
Cashe Memory	2MB
Audio	digital-out and line-out at the back (MPC compatible)
Modes supported	DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-Video, CD-ROM, CD-ROM XA, CD-Audio, CD Extra, CD Text, CD-IReady, CD-Bridge, Photo-CD, VideoCD, Hybrid CD
Writing methods	DAO(disc at once), SAO(session at once), TAO(track at once) with zero gap, variable or fixed packet, multisession
Compatibility	MPC Level 3, MultiRead, PC2001
Weight	1.01 kgr
Dimensions	148mm x 42mm x 190mm

Datawrite 8X DVD-R Printable @ 8X

Datawrite 8X DVD-R @ 8X

Datawrite 8X DVD+R @ 8X

Datawrite 4X DVD+RW @ 4X

- Summary

Media	Code ID	Speed	Time
Datawrite DVD-R 8X Printable	CMC MAG AE1	8X	9:36
Datawrite DVD-R 8X	CMC MAG AE1	8X	9:59
Datawrite DVD+R 8X	MCC 003	8X	9:34
Datawrite DVD+RW 4X	PRODISC W02	4X	14:34
