- Reading Tests

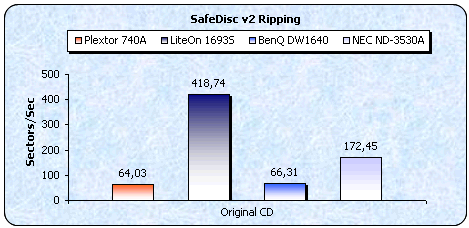

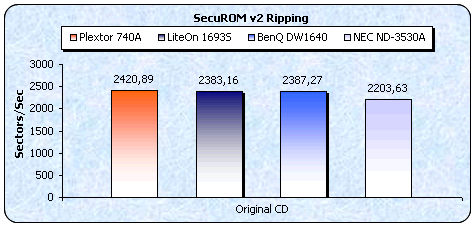

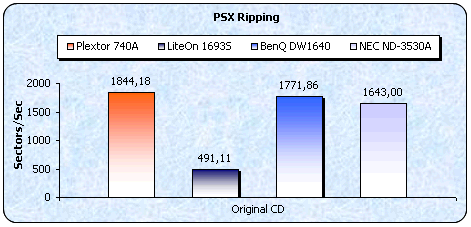

To create the image of the various protected titles to the hard disk, we used Alcohol 120% software and the appropriate settings, according to the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.
Game Title | Protection Scheme | Duration | Reading speed |
PSX "NBA Jam Extreme" | Lybcrypt | 00:49 min | 1844 sectors/sec |
Serious Sam The Second Encounter v1.07 | SafeDisc v.2.60.052 | 1: 27:18 min | 64 sectors/sec |
VRally II | SecuROM v.2 | 2:22 min | 2420 sectors/sec |
With the PSX and SecuROM protected discs, it managed to rip them fast and without errors. This was not the case with the Safedisc protected game though, since it took about 1:30 hours to rip and not without any errors.
- Writing Tests
The Plextor 740A supports the DAO-RAW writing mode. For checking the drive's EFM correction status, we used 5 different game titles with different SafeDisc 2 versions having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (at maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.
- FIFA 2004 - Safe Disc v3.1x
- The Sims Superstar - Safe Disc v2.9x
- The Sims Unleashed - Safe Disc v2.8x
- Serious Sam Second Encounter - Safe Disc v2.51.021
- Max Payne - Safe Disc v2.51.020
The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.
Drive |
Fifa 2004 |
Sims Superstar SD v2.9x |
Sims Unleashed SD v2.8x |
Serious Sam-Second Encounter SD v2.50.051 |
Max Payne SD v2.51.020 |
|||||
EFM OFF |
EFM ON |
EFM OFF |
EFM ON |
EFM OFF |
EFM ON |
EFM OFF |
EFM ON |
EFM OFF |
EFM ON |
|
Toshiba SD-M1502 |
No |
Yes
|
||||||||
Plextor PX 740A |
Unfortunately, as already mentioned, the performance of the drive was not that good with SafeDisc protected games and it was only able to rip up to v2.8x.
