Protected Disc Tests

- Reading Tests

To create the image of the various protected titles to the hard disk, we used Alcohol 120% software and the appropriate settings, according to the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.

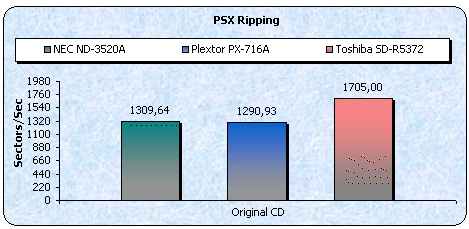

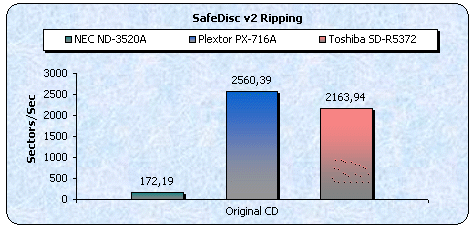

The NEC ND-3520A is one of the slowest drives for SafeDisc v2 ripping. It could only backup the test disc at an average speed of 172.19 sectors/sec. With SecuROM v2 protected discs, the NEC burner was slightly slower than the Plextor and the Toshiba burners and the Toshiba SD-R5372 burner was the fastest with PSX discs.

- Writing Tests

The NEC ND-3520A supports the DAO-RAW writing mode. For checking the drive's EFM correction status, we used 5 different game titles with different SafeDisc 2 versions having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.

• Fifa 2004 - Safe Disc v3.1x
• The Sims Superstar - Safe Disc v2.9x
• The Sims Unleashed - Safe Disc v2.8x
• Serious Sam Second Encounter - Safe Disc v2.51.021
• Max Payne - Safe Disc v2.51.020

The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.

Like most NEC based drives, the ND-3520A cannot produce working backups with the newest v2.8x, v2.9x and v3.1x builds. Partially working backups were produced for SafeDisc v2.51.051 & v2.51.020.
