Q-Check TA Function

PX-755A, as the PX-716A in the past, supports the advanced Q-Check function with the two letters "TA", that are the initials for Time Analyser. Plextools explains exactly what the test measures:

In a few simple words, this advanced Q-Check function checks the geometry of pit and lands on a recorded disc. As most of you know, the DVD specifications specify the length of both pits and lands as multiplies of the T time period of the clock. The Q-Check function checks whether there are any variations in the size of the pit/land spots on a recorded disc, compared to the theoretical values (3T-14T). In extreme cases where these variations are significant, reading could result in read errors.

We checked this function with two different discs, one single layer (MCC DVD+) and one dual layer (MCC DVD+R DL). Both discs were those we also scanned in the PI/PO Test in order to make a comparison with the SA300 CATS analyzer.

Single Layer Disc

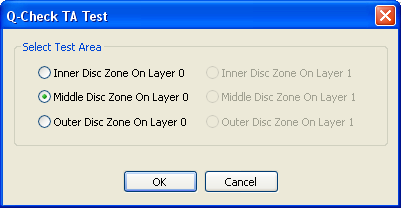

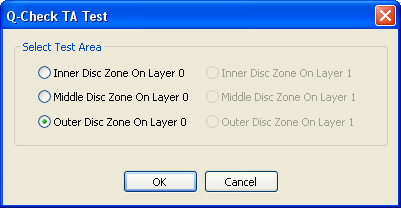

After choosing the test and pressing start, you can select from three zones to "scan", inner/middle/outer for the appropriate disc zone:

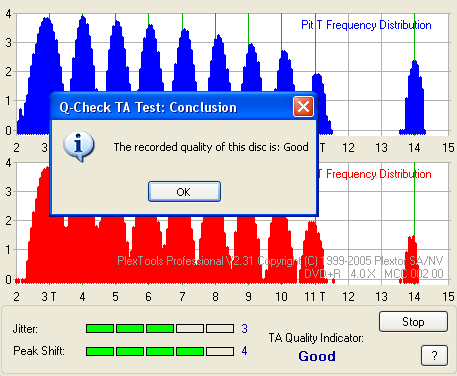

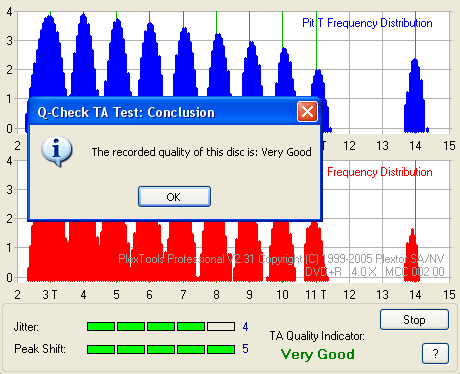

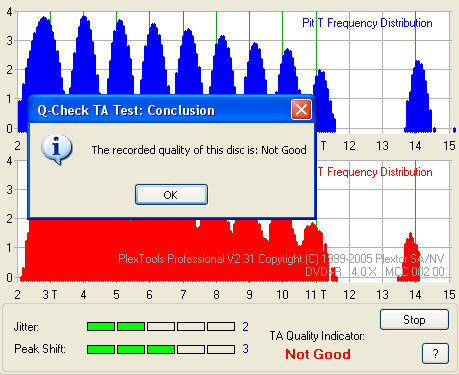

The test results will vary from disc to disc and from zone to zone, however user can easily test a full disc in only 40secs, since each zone takes approximately 10 seconds to finish:

Dual Layer Disc

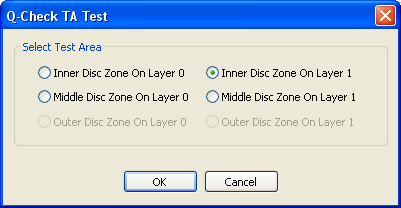

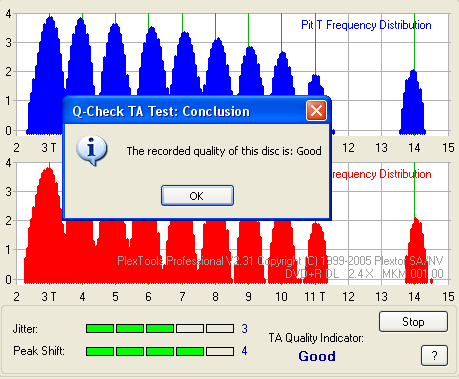

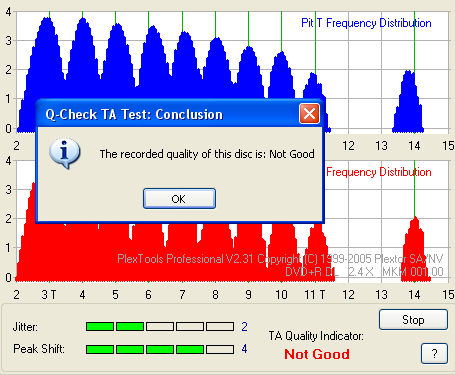

If the inserted disc is a dual layer (DL), user can select inner/middle zone at Layer 0/1, as the following picture illustrates:

Plextools offers the option to save the results as HTML format with some additional information, as in case of PI/PO Test:
