The AEC-1000 consists of a DVD Drive and the "ALChecker" error measurement application which can check the written data quality. The application is capable of 1X CLV measurement as well as 4X CLV on DVD-Video/ROM and finalized DVD+R/-R media.

There are three measurement modes:

- Fine Mode: checks a series of eight consecutive ECC blocks,

- Rough Mode: checks eight consecutive ECC blocks every 100h ECC blocks

- Quick Mode: checks three specified areas

The checking status is shown graphically in real time while you can save the error graph at the end of the test. The reported errors are the PI and the UncPO. The PI counts the number of rows corrected by the PI error correction in each group of eight consecutive ECC blocks. The UncPO counts the number of ECC blocks in which more than one bytes are uncorrectable in eight consecutive ECC blocks. For our quality scans, we set for 1X CLV and Fine Mode which is the slowest and produces the safest results. Also, we chose to measure all the media burned at the maximum available writing speed, namely 16X.

- Plextor 16X DVD+R @ 16X

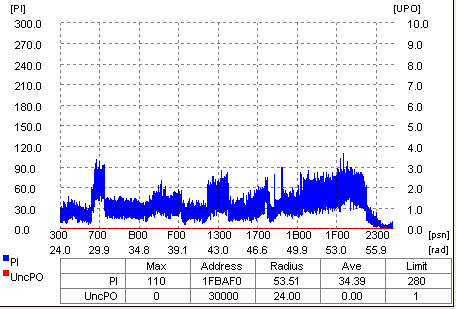

- Prodisc (R05) 16X DVD+R @ 16X

- Verbatim 16X DVD+R @ 16X

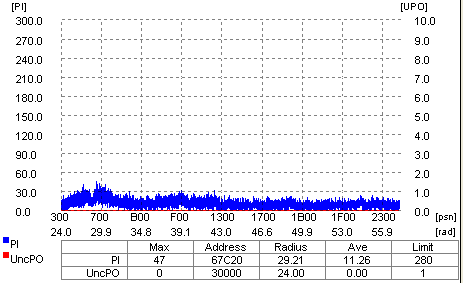

- Philips 16X DVD-R @ 16X

- Prodisc (S05) 16X DVD-R @ 16X

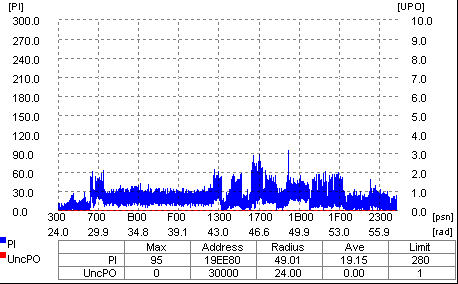

- Verbatim 16X DVD-R @ 16X

- Summary

According to the Almedio AEC-1000 error checker, all of the tested media were found to be of good quality, indicating good writing capabilities from the PX-755A drive with 16X certified media.
