External USB Slim Recorders Comparison

Mar 2,2021 0

1. Introduction / Haiway External ODD&HDD Device



Review Pages

1. Introduction / Haiway External ODD&HDD Device
2. Rodzone A11-SU3
3. Rioddas BT-638 (1st variation)
4. Amicool BT-686
5. Cocopa ECD813-Y
6. Pop-up ODD Device
7. Effelon ODD Device
8. Rioddas BT-638 (2nd variation)
9. HLDS PortableDVD
10. Comparison Of Specifications
11. CD Reading Performance
12. Writing Performance Test Methodology
13. Imation 52X CD-R
14. Maxell 52X CD-R
15. Maxell 52X PRINTABLE CD-R
16. PlexDisc 52X PRINTABLE CD-R
17. Ritek 52X CD-R
18. Verbatim 52X CD-R
19. DVD Reading Performance
20. DataWrite 16X DVD-R
21. HP 16X DVD-R
22. Maxell 16X DVD-R
23. No Brand 16X DVD-R
24. PlexDisc 16X DVD-R
25. TraxData 16X DVD-R
26. Verbatim 16X DVD-R
27. JVC 16X DVD+R
28. Maxell 16X DVD+R
29. Philips 16X DVD+R
30. Sony 16X DVD+R
31. Verbatim 16X DVD+R
32. Verbatim 8X DVD+R DL
33. Summary of Burning Results
34. Conclusion - Final Total Score



Portable mobility has always been a rather hot subject for most users. We all want portable devices that make our life easier especially when you have to store your important data upon them. While storage has shift another root from optical storage, there are many users who wish to have an external optical drive (USB powered) for those last minute backups.

With the recent review of the HLDS PortableDVD that brings a new proposal at the market for 2020-2021, we searched around Amazon to see what other solutions are available to users. To our surprise we found many drives sold with very good users feedback, mainly from unknown to us manufacturers so we had to chase this down to see what users can expect from the so called "popula/best sellersr" external USB recorders. We ordered from Amazon.com many drives with the intention to see what is this all fuss about and test them properly, the way we know and you trust. After several days we had in our labs 8 external USB powered devices to test, compare and decide which one is the best and which one you should trust & buy.

Lets meet our contestants and we start with the Haiway External ODD&HDD Device.

The first drive we bought comes with the name HAIWAY and has no product number. We liked the white plastic shell. The connection cable (USB3.0 cable) is placed at the bottom of the case, which makes it convenient for travel warriors not to have to carry extra cables or loose them..

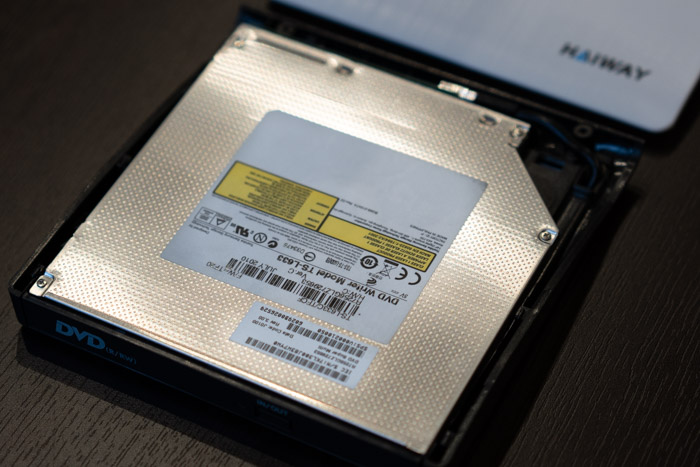

Opening the drive gives us an idea of the internal slim drive being used. In our case, the Haiway External ODD&HDD Device is based upon TSSTcorp TS-633C optical disc drive and has been manufactured....July 2010.

The adapter for SATA->USB cable is being used in most other Chinese external drives enclosures. The main chipset is the Initio Corporation INIC-1618L. Reading from the product specification paper "....The INIC-1618 provides an advanced solution to connect SATA devices to USB Host with integrated CPU and embedded SRAM/ROM. To provide high performance and cost effective solution, the INIC-1618 integrates USB-PHY, Mass Storage Class Bulk-Only USB function, SATA link/PHY core and microprocessor into a single ASIC. The INIC-1618 provides the data transfer rate of up to 60 MB/sec connecting to a 1.5G SATA interface. USB 1.1 and USB 2.0 compliant..."

This bridge chip supports only USB 2.0 so in order to promote the drive as "USB3.0" they just added a "USB 3.0 cable" into that circuit board...

Connecting the drive with the PC we can see more details about the drive it self. The installed firmware is TF20 and even we searched around the internet we could 't find a "newer" firmware. The FirmwareHQ has several other firmware, however we are not very sure that can be used, even they all have older dates than our drive.

As was expected the HAIWAY brand name doesn't return anything over www.google.com so you wont get much support either, only direct from the Amazon seller.

As was expected, despite the fact that the drive is advertised as USB3.0 (and has the corresponding cable), in reality its connected with USB2.0 (high-speed).

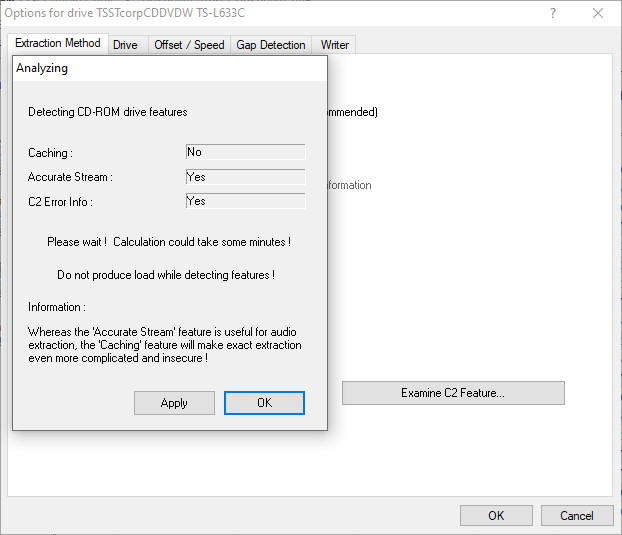

Using the latest EAC (Exact Audio Copy) software we are able to detect important drive features, especially concerning Audio CD Ripping. The drive does seem to support C2 error info and doesn't Cache Audio which will result higher ripping speeds.

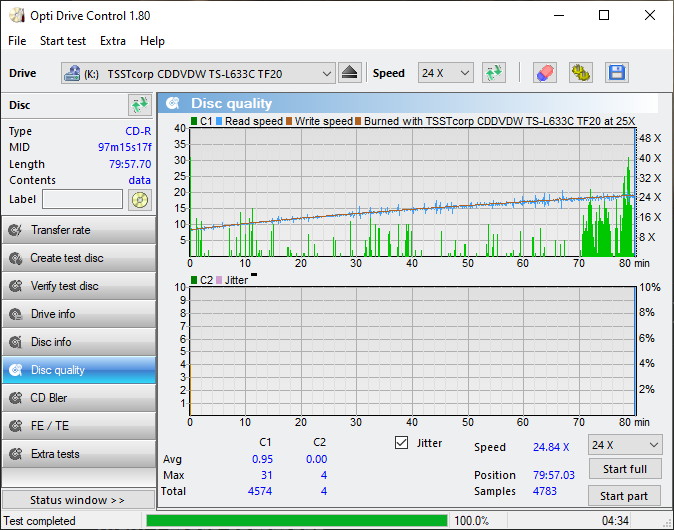

The drive does support C1/C2 and PIE/PIF error scanning with OptiDriveControl and other similar software.

We found around the web the product specifications, mostly for the inner drive (The TSSTcrop TS-L633C)

System Interface
Data transfer speed (Burst) 135 MBps max.
Performance
CD   Key: insert "Max X" speed for each media below. For CD 1X=150 KB/s; DVD 1X=1350 KB/s; BD 1x = 4.5 MB/s
  Read 24 x max. CAV
  Digital Audio Extraction (DAE) 24 x max. CAV
  Write CD-R 24 x max. CAV
  Write CD-RW High Speed: 10 x CLV
Ultra Speed: 24 x ZCLV
DVD
  Read (Single Layer / Dual or Double Layer) 8 x max. CAV
  Write DVD+/-R 8 x max. CAV
  Write DVD+R Double Layer 6 x max. PCAV
  Write DVD-RAM 5 x max. PCAV
  Write DVD+RW 8 x max. ZCLV
  Write DVD-RW 6 x max. ZCLV
Power Consumption Typical Stand-by 60 mA
Sleep 20 mA
Worst case (Active) 950 mA
Acoustic noise Operating (Sound pressure level, typical) Less than 45 dBA at 0.25 m away from bezel and 0.45 m heights away
Power supply Voltage +5 V +/-5 % ripple less than 100 mVp-p
Temperature Operating  °C (°F) 5 °C to 50 °C (41 F to 122 F)
  Non-operating °C (°F) -40 °C to 65 °C (-40 F to 149 F)
Relative Humidity Operating (No condensation) 15 % to 85 %
  Non-operating (No condensation, Power Off, without disc) 10 % to 90 %
Altitude Operating m (ft) -200 m to 3,048 m
  MTBF: 150,000 power on hours (POH)
Dimensions and weight
  Width mm (in) 128 mm
  Depth mm (in) 127 mm
  Height mm (in) 12.7 mm
  Weight g About 170 g
